ID
1380048
$ 126.11
1-2 weeks delivery time
Type:
- 4-Terminal Bipolar
- 3-Terminal Bipolar
- 2-Terminal Single
Voltage:
- 12V
- 24V
Power, W
- 700
- 1300
- 1700
- 2000
- 3000
The Italwinch Windlass Relay Box range provides reliable electrical control for electric anchor windlasses and capstans. Available in 12V and 24V versions with bipolar or unipolar configurations, these original control units support systems from 700W up to 3500W. Featuring an IP56-rated polyester resin enclosure and integrated Up/Down motor control, they ensure safe, dependable switching and long service life in demanding marine environments.
- Description
- Ask a Question
-

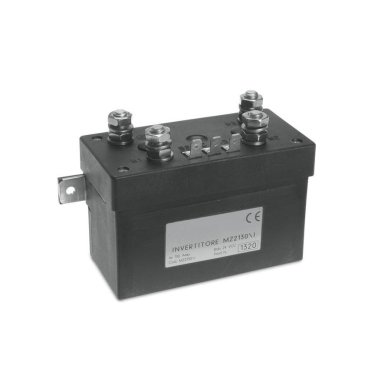

Italwinch Windlass Relay Boxes 12V & 24V – Bipolar and Unipolar IP56 Control Units
The Italwinch Windlass Relay Box range is designed to provide safe and reliable electrical control for Italwinch electric anchor windlasses and capstans. These original relay control units manage motor direction and power distribution while protecting the electrical system during anchor deployment and retrieval.
The series includes 12V and 24V models with both bipolar and unipolar configurations. Depending on the selected version, relay boxes are available for windlass motors from 700W up to 3500W, making them suitable for a wide variety of recreational and professional marine installations.
Each relay box features a durable polyester resin enclosure with IP56 protection, helping resist moisture and harsh marine conditions while ensuring dependable long-term operation.
Key Features
- Original Italwinch relay control units
- Designed for electric anchor windlasses and capstans
- Available for both 12V and 24V electrical systems
- Bipolar and unipolar versions available
- Supports motor power from 700W to 3500W depending on model
- Integrated Up/Down motor control
- Heavy-duty marine contactor design
- Polyester resin enclosure
- IP56 protection against moisture and dust
- Suitable for replacement or new windlass installations
Available Versions
Version Voltage Motor Power Poles Bipolar 12V 700W 4 Bipolar 12V 1300W 4 Bipolar 24V 1300W 4 Bipolar 12V 1700W 3 Bipolar 24V 1200W 3 Bipolar 24V 2300W 4 Bipolar 24V 3500W 4 Unipolar 12V 2000W 2 Unipolar 24V 2000W 2
Technical Specifications
Product Type Windlass Relay Control Box Application Electric Anchor Windlasses and Capstans Operating Voltage 12V or 24V Motor Power Range 700W–3500W Relay Versions Bipolar / Unipolar Number of Poles 2, 3 or 4 depending on model Protection Rating IP56 Housing Material Polyester Resin Control Function Up / Down Motor Switching Manufacturer Italwinch
Applications
- Electric anchor windlasses
- Electric capstans
- Replacement relay boxes
- Original Italwinch electrical components
- Recreational yachts
- Commercial vessels
- New windlass electrical installations
-
