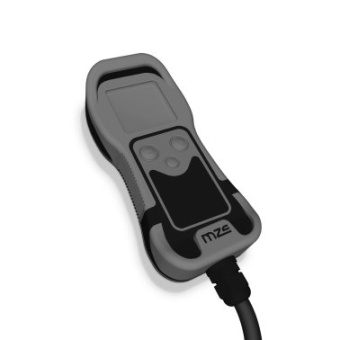

Italwinch HC200 & HC300 Wired Windlass Remote Controls

ID 1380065

$ 134.72

1-2 weeks delivery time

Item:

2-Channel
3-Channel

The Italwinch HC200 and HC300 Wired Windlass Remote Controls are professional handheld control units designed for reliable operation of electric anchor windlasses. Both models feature an ergonomic waterproof housing, IP67 protection, a 4-meter cable, and compatibility with 10–30V DC electrical systems. The HC200 provides 2-channel Up/Down control, while the HC300 adds a third control channel for compatible windlass systems requiring additional functionality. Designed for demanding marine environments, these wired remote controls offer safe, precise, and comfortable windlass operation from onboard working positions.

Description
Ask a Question

Italwinch HC200 & HC300 Wired Windlass Remote Controls 10–30V IP67 – 2 & 3 Channel

The Italwinch HC Series consists of professional wired handheld remote controls developed for safe and convenient operation of electric anchor windlasses. Designed for both recreational and commercial vessels, these controllers provide reliable push-button operation for anchor deployment and retrieval while maintaining excellent durability in harsh marine environments.

Both models operate on 10–30V DC, feature an ergonomic handheld design, an IP67 waterproof rating, and include a 4-meter control cable for comfortable operation from the foredeck or cockpit. The HC200 provides standard two-channel Up/Down control, while the HC300 offers an additional third channel for compatible windlass systems requiring extra control functionality.

Key Features

Original Italwinch HC Series wired windlass remote controls
Available in 2-channel and 3-channel versions
Compatible with 10–30V DC electrical systems
Ergonomic handheld housing for comfortable operation
IP67 waterproof protection for marine environments
Heavy-duty 4-meter control cable
Reliable push-button control for anchor deployment and retrieval
Designed for recreational and commercial vessels
Direct replacement for previous Italwinch EV200 and EV300 remote controls

Technical Specifications

Specification	HC200	HC300
Channels	2	3
Operating Voltage	10–30V DC	10–30V DC
Protection Rating	IP67	IP67
Cable Length	4 m	4 m
Connection	3-Pole	4-Pole
Approximate Dimensions	76 × 170 × 34 mm	76 × 170 × 34 mm

Available Versions

Part Number	Model	Description
601761	HC200	2-channel handheld wired remote with 3-pole connection. Replacement for EV200.
601762	HC300	3-channel handheld wired remote with 4-pole connection. Replacement for EV300.

Applications

Electric anchor windlasses
Sailing yachts
Motor yachts
Commercial vessels
Replacement handheld windlass controls
New windlass installations

Note: The HC200 and HC300 are wired handheld controllers intended for compatible Italwinch electric windlass systems. Select the appropriate version according to the number of control channels and connector type required by your installation.
