The Lewmar C4 Capstan is a heavy-duty marine capstan available in 12 V / 1600 W and 24 V / 2000 W versions. Built entirely from AISI 316 stainless steel with WARP™ drum technology and a worm gearbox, it delivers up to 1500 kg maximum pull and is designed for boats from 16 to 20 m.
- Description
- Ask a Question
-
Lewmar C4 Marine Capstan 12V/24V – 1600W & 2000W for Boats 16–20 m

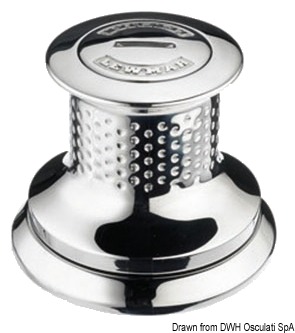

The Lewmar C4 Capstan is a heavy-duty marine capstan engineered for professional rope handling on larger sailing yachts and motor yachts. Manufactured entirely from polished AISI 316 stainless steel, it combines exceptional corrosion resistance with high pulling performance and smooth operation.
The C4 series is available in both 12 V / 1600 W and 24 V / 2000 W versions. Its advanced WARP™ drum finish improves rope grip while reducing rope wear by up to 30%, and the compact worm gearbox minimizes installation depth. The gearbox incorporates an anti-runback mechanism that functions as a mechanical brake for enhanced operational safety.
Designed for vessels from 16 to 20 metres, the complete capstan kit includes the deck unit, motor/gearbox assembly, remote solenoid and all major operating components required for installation.
Features
- Professional marine capstan for large yachts
- Available in 12 V / 1600 W and 24 V / 2000 W versions
- Solid AISI 316 stainless steel construction
- WARP™ drum technology for improved grip and reduced rope wear
- Compact worm gearbox reduces installation depth
- Gearbox with integrated anti-runback mechanical brake
- Remote solenoid included
- Suitable for boats from 16 to 20 m
Available Versions
Osculati Code Model Voltage Motor Power 02.612.12 C4 12 V 1600 W 02.612.24 C4 24 V 2000 W
Technical Specifications
Specification 12 V Model 24 V Model Motor Power 1600 W 2000 W Maximum Pull 1250 kg 1500 kg Continuous Pull 313 kg 375 kg Maximum Line Speed 25 m/min 27 m/min Current Draw 125 A 70 A Recommended Circuit Breaker 150 A 110 A Recommended Boat Length 16–20 m 16–20 m Weight 25 kg 25 kg
Package Includes
- C4 capstan deck unit
- Motor and gearbox assembly
- Remote solenoid
Available Spare Parts
Part Code 12 V Solenoid 68.123.12 24 V Solenoid 02.590.05 12 V Motor/Gearbox 02.525.12 24 V Motor/Gearbox 02.525.24 Deck Unit 02.522.03 -
