Italwinch Star and Star Plus 1500, 1700, 2000, 2300, 2700W Anchor Windlass for Boats 13-26 m, 10/12/13/14 mm Chain

€ 6.351,49

1-2 weeks delivery time
Price incl. 19% VAT

Voltage:

230/400
12
24

Electric power, W:

1500
1700
2000
2200
2300
2700
3600

Size, mm:

Item:

Without drum
With drum

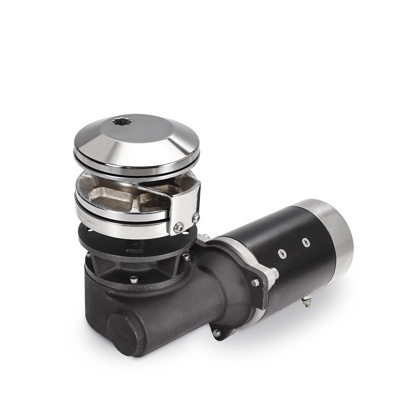

The Italwinch Star and Star Plus Windlass series offers a range of powerful, reliable anchor winches suitable for boats between 13 and 26 meters in length. These windlasses are compatible with chains ranging from 10mm to 14mm (DIN 766) and come in power configurations from 1500W to 3600W, ensuring excellent performance even for larger vessels. Crafted from durable 316 marine stainless steel, they include a built-in anchor chain counter sensor and are available in both with and without drum configurations. Designed to handle demanding anchoring tasks, these winches are ideal for vessels requiring robust, dependable equipment.

Description
Ask a Question

The Italwinch Star and Star Plus series of windlasses provide a range of high-power, reliable anchoring solutions for boats ranging from 13 to 26 meters in length. With power options ranging from 1500W to 3600W, these winches are designed to handle chains from 10mm to 14mm in diameter (DIN 766) and provide superior performance for larger vessels. Constructed from 316 marine stainless steel, they offer excellent corrosion resistance and durability in harsh marine environments.

Key Features:

High-Power Options: Available in 1500W, 1700W, 2000W, 2300W, and 2700W versions to accommodate various boat sizes and anchoring requirements.
Versatile Chain Compatibility: Compatible with chains ranging from 10mm to 14mm (DIN 766), and available with an optional brushpile suitable for ISO 10mm chain.
Durable Construction: Built from 316 marine stainless steel for enhanced strength and resistance to corrosion, ensuring longevity even in challenging marine environments.
Chain Counter Sensor: The built-in chain counter sensor allows for easy monitoring of the deployed chain length, providing greater control during anchoring operations.
Optional Drum Configuration: Choose from models with or without a drum (cabestan) depending on your boat's anchoring needs.
Suitable for Larger Vessels: Ideal for boats ranging from 13 meters to 26 meters in length, with deck thickness compatibility from 50mm to 110mm, depending on the power model.
AC Power Options: Available in 230/400V AC versions for boats requiring high-voltage systems.

Specifications:

Voltage (V)	Chain Thickness (mm)	Power (W)	Current Power (A)	Drop Speed (m/min)	Reel	Maximum Load (kg)	Workload (kg)
12	10	1500	130	25	Yes	500	180
24	10	1500	70	25	Yes	500	180
12	10	1700	138	25	Yes	750	250
24	10	2000	80	26	Yes	850	280
12	12	2200	140	12	Yes	1000	500
24	13	2700	180	12	Yes	840	600
230/400	13	3600	–	12	Yes	1160	550

The Italwinch Star and Star Plus windlasses provide unparalleled anchoring performance for medium to large vessels. With various power and chain thickness options, these winches are equipped to handle the most demanding anchoring tasks, offering flexibility, reliability, and long-lasting durability. Whether you need a model with or without a drum, and with AC or DC power, these winches ensure that your vessel is equipped for reliable anchoring operations.
