Exalto EWT 223BDS 12V 50° compact bulkhead-mounted wiper motor designed for MD1 series installations. With a pendulum arm, interval wiping, and self-parking, it provides dependable performance in a space-saving design.
- Description
- Ask a Question
-

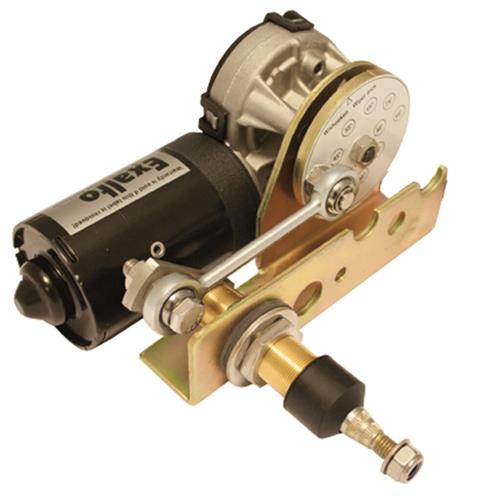

Exalto EWT Wiper 223BDS 12V 50° 23Nm Bulkhead 20mm
The Exalto EWT 223BDS 12V wiper motor with a 50° angle of view is part of the MD1 series and designed for bulkhead installation. Featuring a pendulum arm type, interval wiping, and a self-parking system, this motor ensures dependable wiping performance with a compact housing.
Key Features
- Bulkhead-mounted design
- 50° angle of view
- Pendulum arm configuration
- Speed interval and self-parking
- Ungrounded 12V DC operation
Technical Data
Product Key XA2165.30S-50 Sales Unit 1 piece EAN Code 8720763538931 Voltage 12 VDC Type VDC Power 36 W Torque 23 Nm Angle of View 50° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 78 mm Wall Thickness 20 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 170 mm Product Depth 186 mm Product Height 90 mm Series MD1 Suitable For MD1 series Arm Type PENDULUM Speed Interval Yes Self-Parking Yes Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. | Article code: XA2165.30S-50 | Barcode: 8720763538931
-
