ID
1345223
$ 429.66
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 12V wiper motor with a 70° angle of view is designed for extended coverage in a bulkhead-mounted MD1 series configuration. It features a pendulum arm type, interval wiping, and self-parking, providing consistent operation with 23 Nm torque.
- Description
- Ask a Question
-

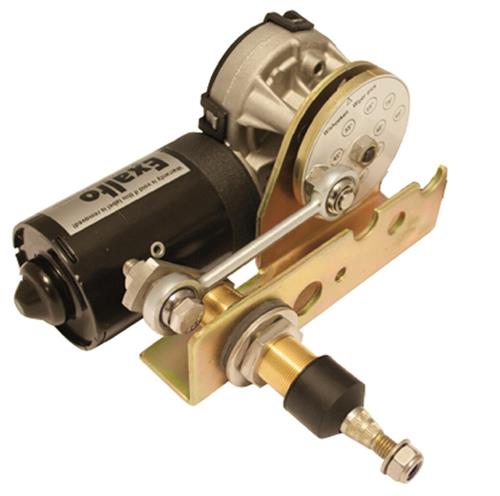

Exalto EWT Wiper 223BDS 12V 70° 23Nm Bulkhead 20mm
The Exalto EWT 223BDS 12V wiper motor with a 70° angle of view is designed for applications requiring extended wiping coverage. As part of the MD1 series, this bulkhead-mounted model features a pendulum arm type, interval wiping, and a self-parking function for dependable performance.
Key Features
- Bulkhead-mounted wiper motor
- 70° angle of view
- Pendulum arm type
- Speed interval control
- Self-parking function
- Ungrounded 12V DC system
Technical Data
Article Code XA2165.30S-70 Sales Unit 1 piece EAN Code 8720763538979 Voltage 12 VDC Type VDC Power 36 W Torque 23 Nm Angle of View 70° Driven Axles 1 High Speed 60 rpm Low Speed 40 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 78 mm Wall Thickness 20 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 186 mm Product Height 90 mm Series MD1 Suitable For MD1 series Arm Type PENDULUM Speed Interval Yes Self-Parking Yes Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. | Article code: XA2165.30S-70 | Barcode: 8720763538979
-
