ID
1345217
$ 429.66
1-2 weeks delivery time
-
+
Exalto EWT 223BD 12V 40° compact bulkhead-mounted wiper motor from the MD1 series with pendulum arm, interval wiping, and self-parking. Its 23 Nm torque and compact housing suit controlled wiping applications.
- Description
- Ask a Question
-
Exalto EWT Wiper 223BD 12V 40° 23Nm Bulkhead 20mm

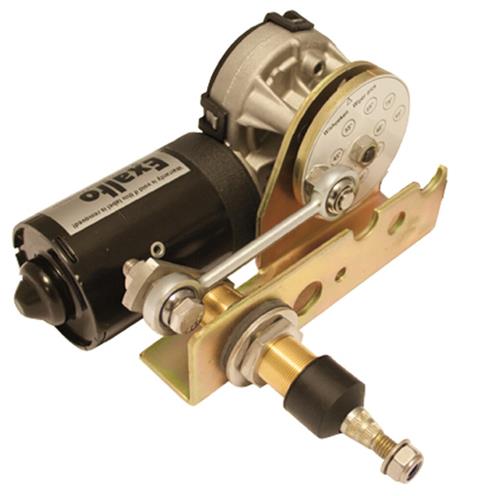

The Exalto EWT 223BD 12V wiper motor with a 40° angle of view is part of the MD1 series and designed for bulkhead mounting. This variant features a pendulum arm type, interval wiping, and a self-parking function. With a compact design and 23 Nm torque, it is suitable for controlled wiping applications.
Key Features
- Bulkhead-mounted wiper motor
- 40° angle of view
- Pendulum arm type
- Speed interval control
- Self-parking function
- Ungrounded 12V DC system
Technical Data
Article Code XA2165.30S-40 Sales Unit 1 piece EAN Code 8720763538917 Voltage 12 VDC Type VDC Power 36 W Torque 23 Nm Angle of View 40° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 78 mm Wall Thickness 20 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 170 mm Product Depth 186 mm Product Height 90 mm Series MD1 Suitable For MD1 series Arm Type PENDULUM Speed Interval Yes Self-Parking Yes Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. | Article code: XA2165.30S-40 | Barcode: 8720763538917
-
