ID
1345221
$ 429.66
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 12V wiper motor with a 60° angle of view provides reliable wiping performance in a bulkhead-mounted design. Belonging to the MD1 series, it includes a pendulum arm type, speed interval control, and self-parking, delivering 23 Nm torque with optimized speed settings.
- Description
- Ask a Question
-

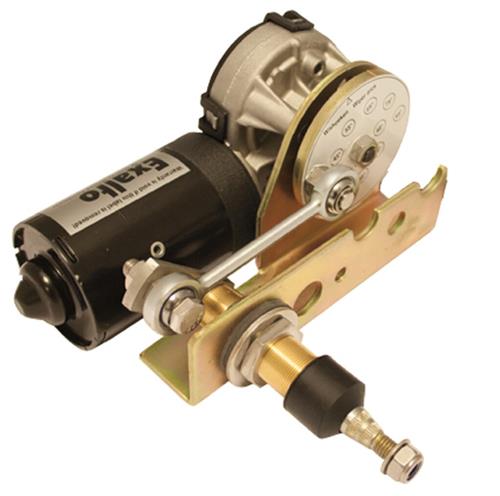

Exalto EWT Wiper 223BDS 12V 60° 23Nm Bulkhead 20mm
The Exalto EWT 223BDS 12V wiper motor with a 60° angle of view is a bulkhead-mounted solution within the MD1 series. It features a pendulum arm type, speed interval control, and a self-parking function. With a torque of 23 Nm and optimized speed settings, this model delivers reliable wiping performance for marine and industrial installations.
Key Features
- Bulkhead-mounted wiper motor
- 60° angle of view
- Pendulum arm type
- Speed interval control
- Self-parking function
- Ungrounded 12V DC system
- Suitable for MD1 series
Technical Data
Article Code XA2165.30S-60 Sales Unit 1 piece EAN Code 8720763538955 Voltage 12 VDC Type VDC Power 36 W Torque 23 Nm Angle of View 60° Driven Axles 1 High Speed 60 rpm Low Speed 40 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 78 mm Wall Thickness 20 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 186 mm Product Height 90 mm Series MD1 Suitable For MD1 series Arm Type PENDULUM Speed Interval Yes Self-Parking Yes Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. | Article code: XA2165.30S-60 | Barcode: 8720763538955
-
