Exalto EWT 223BDS 12V 45° compact bulkhead-mounted wiper motor for MD1 series use, featuring a pendulum arm, interval control, and self-parking. It delivers reliable and precise wiping performance in marine and industrial environments.
- Description
- Ask a Question
-

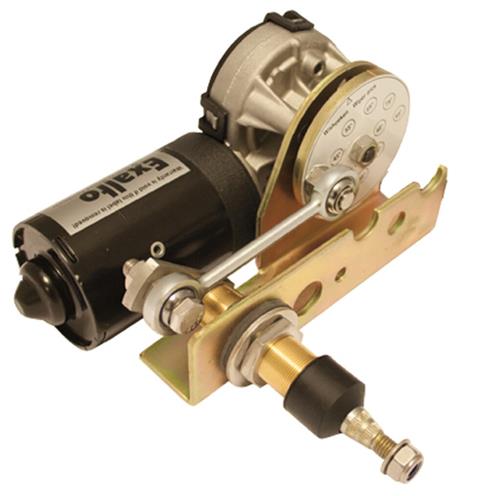

Exalto EWT Wiper 223BDS 12V 45° 23Nm Bulkhead 20mm
The Exalto EWT 223BDS 12V wiper motor with a 45° angle of view is a compact bulkhead-mounted solution within the MD1 series. Designed with a pendulum arm type, speed interval control, and a self-parking function, this wiper motor delivers reliable and controlled wiping performance for marine and industrial applications.
Key Features
- Bulkhead-mounted wiper motor
- 45° angle of view
- Pendulum arm type
- Speed interval function
- Self-parking function
- Ungrounded 12V DC system
- Suitable for MD1 series
Technical Data
Product Key XA2165.30S-45 Sales Unit 1 piece EAN Code 8720763538924 Voltage 12 VDC Type VDC Power 36 W Torque 23 Nm Angle of View 45° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 78 mm Wall Thickness 20 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 170 mm Product Depth 186 mm Product Height 90 mm Series MD1 Suitable For MD1 series Arm Type PENDULUM Speed Interval Yes Self-Parking Yes Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. | Article code: XA2165.30S-45 | Barcode: 8720763538924
-
