ID
1345226
$ 429.66
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 12V wiper motor with an 85° angle of view offers wide coverage in a compact bulkhead-mounted MD1 series model. It includes a pendulum arm type, speed interval control, and self-parking, operating on an ungrounded 12V DC system with 23 Nm torque.
- Description
- Ask a Question
-
Exalto EWT Wiper 223BDS 12V 85° 23Nm Bulkhead 20mm

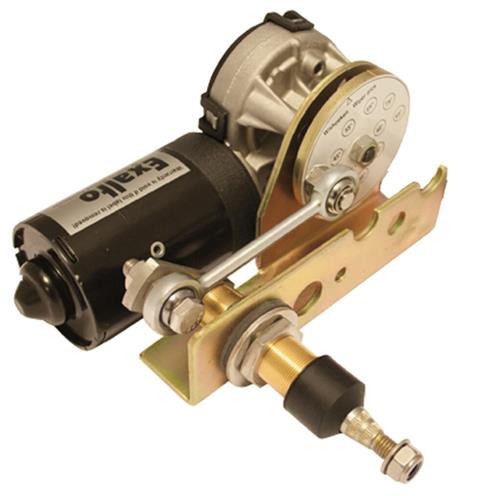

The Exalto EWT 223BDS 12V wiper motor with an 85° angle of view delivers wide wiping coverage in a compact bulkhead-mounted format. Part of the MD1 series, it features a pendulum arm type, speed interval control, and a self-parking function for reliable marine and industrial operation.
Key Features
- Bulkhead-mounted wiper motor
- 85° angle of view
- Pendulum arm type
- Speed interval control
- Self-parking function
- Ungrounded 12V DC system
Technical Data
Article Code XA2165.30S-85 Sales Unit 1 piece EAN Code 8720763539006 Voltage 12 VDC Type VDC Power 36 W Torque 23 Nm Angle of View 85° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 78 mm Wall Thickness 20 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 170 mm Product Depth 186 mm Product Height 90 mm Series MD1 Suitable For MD1 series Arm Type PENDULUM Speed Interval Yes Self-Parking Yes Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. | Article code: XA2165.30S-85 | Barcode: 8720763539006
-
