The Exalto EWT 223BDS 12V wiper motor with a 65° angle of view ensures wider wiping coverage while remaining compact for bulkhead mounting. This MD1 series model combines a pendulum arm type with interval wiping and self-parking, operating on an ungrounded 12V DC system with 23 Nm torque.
- Description
- Ask a Question
-

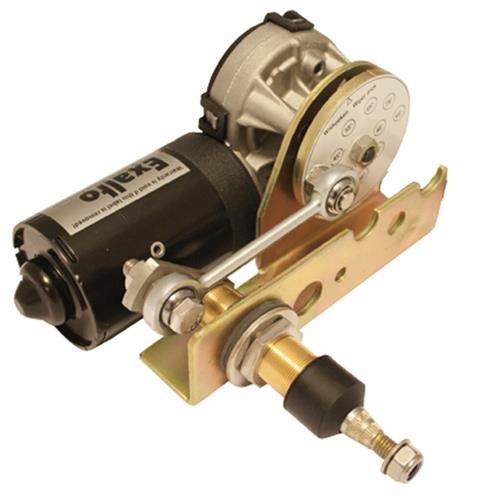

Exalto EWT Wiper 223BDS 12V 65° 23Nm Bulkhead 20mm
The Exalto EWT 223BDS 12V wiper motor with a 65° angle of view provides wider wiping coverage while maintaining a compact bulkhead-mounted design. Part of the MD1 series, it combines a pendulum arm type with interval wiping and self-parking for consistent and controlled operation.
Key Features
- Bulkhead-mounted construction
- 65° angle of view
- Pendulum arm configuration
- Speed interval and self-parking
- Ungrounded 12V DC operation
Technical Data
Article Code XA2165.30S-65 Sales Unit 1 piece EAN Code 8720763538962 Voltage 12 VDC Type VDC Power 36 W Torque 23 Nm Angle of View 65° Driven Axles 1 High Speed 60 rpm Low Speed 40 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 78 mm Wall Thickness 20 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 186 mm Product Height 90 mm Series MD1 Suitable For MD1 series Arm Type PENDULUM Speed Interval Yes Self-Parking Yes Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. | Article code: XA2165.30S-65 | Barcode: 8720763538962
-
