ID
1345224
$ 429.66
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 12V wiper motor with a 75° angle of view delivers dependable wiping performance for marine and industrial use. Part of the MD1 series, it combines a pendulum arm type with speed interval control and self-parking, operating on an ungrounded 12V DC system with 23 Nm torque.
- Description
- Ask a Question
-

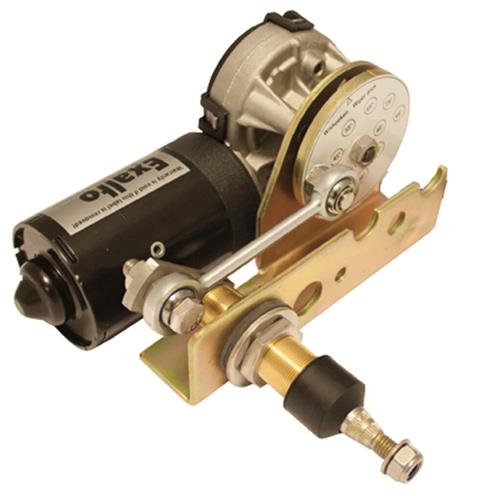

Exalto EWT Wiper 223BDS 12V 75° 23Nm Bulkhead 20mm
The Exalto EWT 223BDS 12V wiper motor with a 75° angle of view is designed for bulkhead mounting within the MD1 series. This model combines a pendulum arm type with speed interval control and a self-parking function. With a torque output of 23 Nm, it ensures dependable wiping performance for marine and industrial applications.
Key Features
- Bulkhead-mounted wiper motor
- 75° angle of view
- Pendulum arm type
- Speed interval control
- Self-parking function
- Ungrounded 12V DC system
- Suitable for MD1 series
Technical Data
Article Code XA2165.30S-75 Sales Unit 1 piece EAN Code 8720763538986 Voltage 12 VDC Type VDC Power 36 W Torque 23 Nm Angle of View 75° Driven Axles 1 High Speed 60 rpm Low Speed 40 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 78 mm Wall Thickness 20 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 186 mm Product Height 90 mm Series MD1 Suitable For MD1 series Arm Type PENDULUM Speed Interval Yes Self-Parking Yes Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. | Article code: XA2165.30S-75 | Barcode: 8720763538986
-
