The Vetus M435A123A propulsion engine and gearbox package combines a Vetus M4.35 (Mitsubishi basis) 4-cylinder engine with a ZF12M 2.63R swivel gearbox. The assembly is specified at 1500 cm³ displacement and a maximum power rating (ISO 3046-1) of 33 HP / 24.3 kW at 3,000 rpm, with 2.63:1 gear reduction and gearbox output 0°. Stated equipment and limits include a heat-exchanger cooling arrangement, swirl/pre-chamber combustion process, maximum installation angle of 15°, a 12V/110A alternator, and BSO approval M1 99 3 08 02.
- Description
- Ask a Question
-

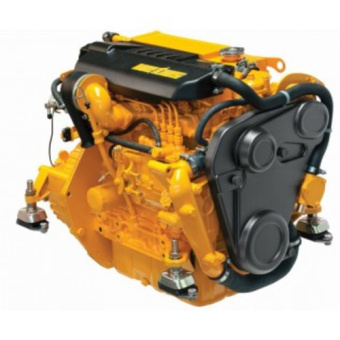

Vetus M435A123A M4.35 Diesel Engine With ZF12M 2.63R Gearbox
The Vetus M435A123A is a marine propulsion package based on the Vetus M4.35 engine, supplied paired with a ZF12M swivel gearbox in the 2.63R configuration. It is described as using a heat exchanger cooling arrangement and a swirl/pre-chamber combustion process.
Compatibility
- Vetus M4.35 engine model (Mitsubishi basis)
- ZF12M swivel gearbox with 2.63:1 reduction (2.63R)
Technical Specifications
Engine Model Vetus M4.35 Number of Cylinders 4 Displacement 1500 cm³ Max Power (ISO 3046-1) 33 HP / 24.3 kW at 3,000 rpm Gear Reduction 2.63:1 Gearbox Output 0° Maximum Installation Angle 15° Alternator 12V/110A BSO Approval M1 99 3 08 02
Product Details
- Engine basis: Mitsubishi
- Gearbox type: Swivel gearbox (ZF12M)
- Cooling system: Utilizes heat exchanger
- Combustion process: Swirl/pre-chamber
Features
- 4-cylinder design
- ZF12M swivel gearbox with 2.63:1 reduction
- Gearbox output 0°
- Heat exchanger cooling system
- Maximum installation angle of 15°
- 12V/110A alternator
-
