The Vetus M435A602A marine propulsion engine-and-gearbox assembly combines a Vetus M4.35 (basis Mitsubishi 4-cylinder) with a Technodrive TMC60 gearbox featuring a straight outlet and 2.0:1 reduction. Key ratings and build data include 1758 cm³ displacement and maximum power (ISO 3046-1) of 33 HP / 24.3 kW at 3,000 rpm, plus a 2-circuit cooling system, swirl/pre-chamber combustion process, 12V/110A alternator, maximal installation angle of 15°, BSO approval M1 99 3 08 02, and a stated weight of 180 kg including gearbox.
- Description
- Ask a Question
-

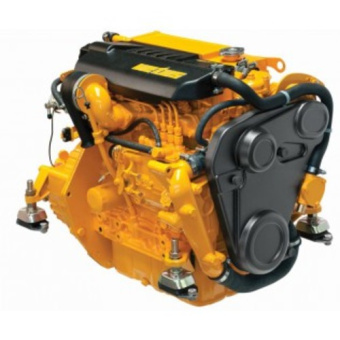

Vetus M435A602A M4.35 Engine Package With TMC60 2.0:1 Gearbox
The Vetus M435A602A is a marine engine and gearbox combination based on a Mitsubishi 4-cylinder engine platform and supplied with a Technodrive TMC60 transmission. It is configured as a complete propulsion package with a straight-outlet gearbox and a specified reduction ratio for marine drivetrain integration.
Compatibility
- Engine model: Vetus M4.35
- Gearbox: Technodrive TMC60 (straight outlet)
Technical Specifications
Engine Model Vetus M4.35 Number of Cylinders 4 Displacement 1758 cm³ Max Power (ISO 3046-1) 33 HP / 24.3 kW at 3,000 rpm Gearbox Technodrive TMC60, straight outlet Reduction 2.0 : 1 Alternator 12V / 110A Maximal Installation Angle 15° Weight (Including Gearbox) 180 kg BSO Approval M1 99 3 08 02
Product Details
- Basis engine: Mitsubishi 4-cylinder engine delivering 33 horsepower
- Cooling: efficient 2-circuit cooling system
- Combustion process: swirl/pre-chamber
Features
- 4-cylinder engine configuration
- 2-circuit cooling system for temperature regulation
- Swirl/pre-chamber combustion process
- Maximal installation angle of 15°
- 12V/110A alternator
- Weight stated as 180 kg including gearbox
-
