The Vetus M435A612A engine-and-gearbox package combines a Mitsubishi M4.35 diesel 4-stroke, 4-cylinder engine (1,500 cm³) with a TMC60A gearbox specified with i=2.0 reduction. Rated output is 33 HP (24.3 kW) at 3,000 rpm, with heat exchanger cooling, a 2-circuit cooling system, and a 12V electrical system featuring a 12V/110A alternator. Maximum installation angle is 15°, and stated weight with gearbox is 180 kg; the package includes motor mounts (KSTEUN75) and an instrument panel (MP22BS12A) and references an MP22 control panel.
- Description
- Ask a Question
-

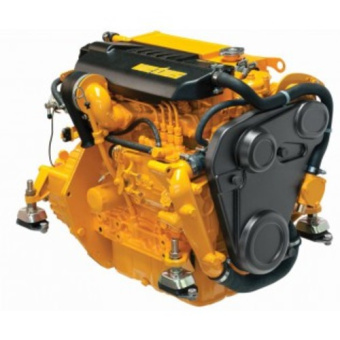

Vetus M435A612A Mitsubishi M4.35 Diesel Package With TMC60A Gearbox
The Vetus M435A612A is a marine propulsion package combining a Mitsubishi M4.35 diesel engine with a TMC60A gearbox. The set is presented as a complete engine-and-reduction gearbox combination intended to provide propulsion power and controlled maneuvering in marine installations.
Compatibility
- Mitsubishi M4.35 engine
- TMC60A gearbox
Technical Specifications
Engine Type Diesel 4-Stroke Model Vetus M4.35 Cylinders 4 Displacement 1,500 cm³ Maximum Power 33 HP / 24.3 kW at 3,000 rpm Gearbox TMC60A Reduction Ratio i=2.0 Cooling System Heat Exchanger Cooling Circuit 2-Circuit Cooling System Electrical System 12V Alternator 12V/110A Max Installation Angle 15° Weight (With Gearbox) 180 kg
Product Details
- Control panel referenced: MP22
- Included motor mounts: KSTEUN75
- Included instrument panel: MP22BS12A
-
