The Vetus M435A402A diesel propulsion package combines a Mitsubishi M4.35 marine diesel engine with a Technodrive TMC40 gearbox configured with a straight outlet and a 2.0 reduction ratio. The assembly is rated at 33HP/24.3 kW at 3,000 rpm and uses a 4-cylinder, 1758 cm³ engine platform with a 2-circuit cooling system plus a 12V electrical system supplied with an MP22 panel.
- Description
- Ask a Question
-
Vetus M435A402A Mitsubishi M4.35 Engine Package With TMC40 Gearbox

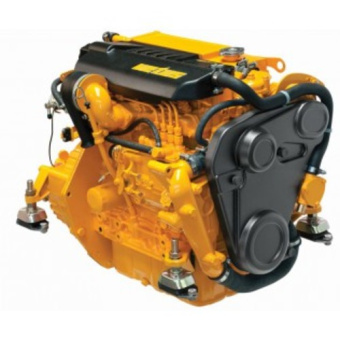

The Vetus M435A402A is a marine diesel engine package built around the Mitsubishi M4.35 power unit and supplied with a Technodrive TMC40 marine gearbox. This configuration is intended for marine propulsion installations where a matched engine-and-gearbox set with a defined reduction ratio and straight outlet arrangement is required.
Compatibility
- Mitsubishi M4.35 marine diesel engine configuration
- Technodrive TMC40 gearbox configuration
Technical Specifications
Engine Rating 33 HP / 24.3 kW at 3,000 rpm Number of Cylinders 4 Displacement 1758 cm³ Cooling System 2-circuit cooling system Electrical System 12 V Control Panel MP22 panel Gearbox Model Technodrive TMC40 Gearbox Outlet Straight outlet Gear Ratio / Reduction i = 2.0
Product Details
- Marine diesel engine: Mitsubishi M4.35
- Gearbox included: Technodrive TMC40 with straight outlet
- Supplied with MP22 panel as standard
- Configuration includes a 2-circuit cooling arrangement and 12 V electrical system
Features
- Matched engine and gearbox package with specified i=2.0 reduction
- 4-cylinder, 1758 cm³ engine platform
- 2-circuit cooling system and 12 V electrical system with MP22 panel
-
