The Vetus M445A123A diesel engine and gearbox package is a Vetus M4.45 (Mitsubishi M4.45) 4-cylinder, 4-stroke marine propulsion unit supplied with a ZF12M gearbox (straight outlet) and 2.63 reduction. Rated output is 42 PS (30.9 kW) at 3,000 rpm with 1758 cm³ displacement, and it is specified with 98 Nm maximum torque at 3,200 rpm. The installation includes a 12V electrical system (MP22 panel), 12V/110A alternator, heat exchanger cooling / 2-circuit cooling specification, and connection sizes including 50 mm exhaust, 20 mm cooling-water inlet, and 8 mm diesel inlet/return; weight with gearbox is 185 kg and maximum installation angle is 15° (BSO approval: M1 99 3 08 02).
- Description
- Ask a Question
-

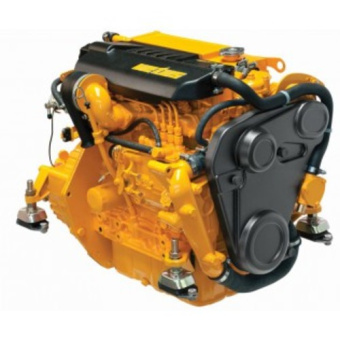

Vetus M445A123A M4.45 Diesel Engine Package With ZF12M 2.63 Reduction
The Vetus M445A123A is a diesel 4-stroke marine engine configuration based on the Vetus M4.45 (Mitsubishi M4.45) and supplied with a ZF12M marine gearbox. This engine/gearbox combination is specified with a straight-outlet transmission arrangement and a 2.63 reduction ratio.
Compatibility
- Model: Vetus M4.45
- Engine base: Mitsubishi M4.45
- Gearbox: ZF12M (straight outlet)
Technical Specifications
Engine Type Diesel 4-Stroke Cylinders 4 Displacement 1758 cm³ Maximum Power (ISO 3046-1) 42 PS / 30.9 kW Rated Speed 3,000 rpm Maximum Torque at 3,200 rpm 98 Nm Bore x Stroke 78 x 92 mm Maximum Engine Speed 3,000 rpm Cooling System (As Specified) 2-circuit cooling; heat exchanger Maximum Installation Angle 15° Electric System 12V, MP22 panel Alternator 12V/110A Gearbox ZF12M with straight outlet Reduction 2.63 Weight With Gearbox 185 kg Exhaust Diameter 50 mm Cooling Water Inlet Diameter 20 mm Diesel Inlet Diameter 8 mm Diesel Return Diameter 8 mm BSO Approval M1 99 3 08 02
Product Details
- Part number: M445A123A
- Engine model: Vetus M4.45
- Supplied gearbox model: ZF12M
- Specified gearbox outlet: Straight outlet
Features
- 4-cylinder diesel 4-stroke configuration
- 12V electrical system with MP22 panel
- ZF12M gearbox with 2.63 reduction
-
