The Jabsco 58280-3012 deluxe electric marine toilet delivers quiet raw water flushing and powerful macerator discharge in a compact 14 inch straight-back design for mounting against vertical bulkheads. Its pure white vitreous china bowl conceals plumbing and wiring for a clean, hygienic installation, while the soft-close seat and one-touch control panel add comfort and simple operation. Built for sea, river, or lake water (salt or fresh), it connects to 19 mm inlet and 38 mm waste outlet hoses and includes a remote-mounted PAR-MAX 2.9 flush pump plus Pumpgard strainer for reliable flushing performance.
- Description
- Ask a Question
-

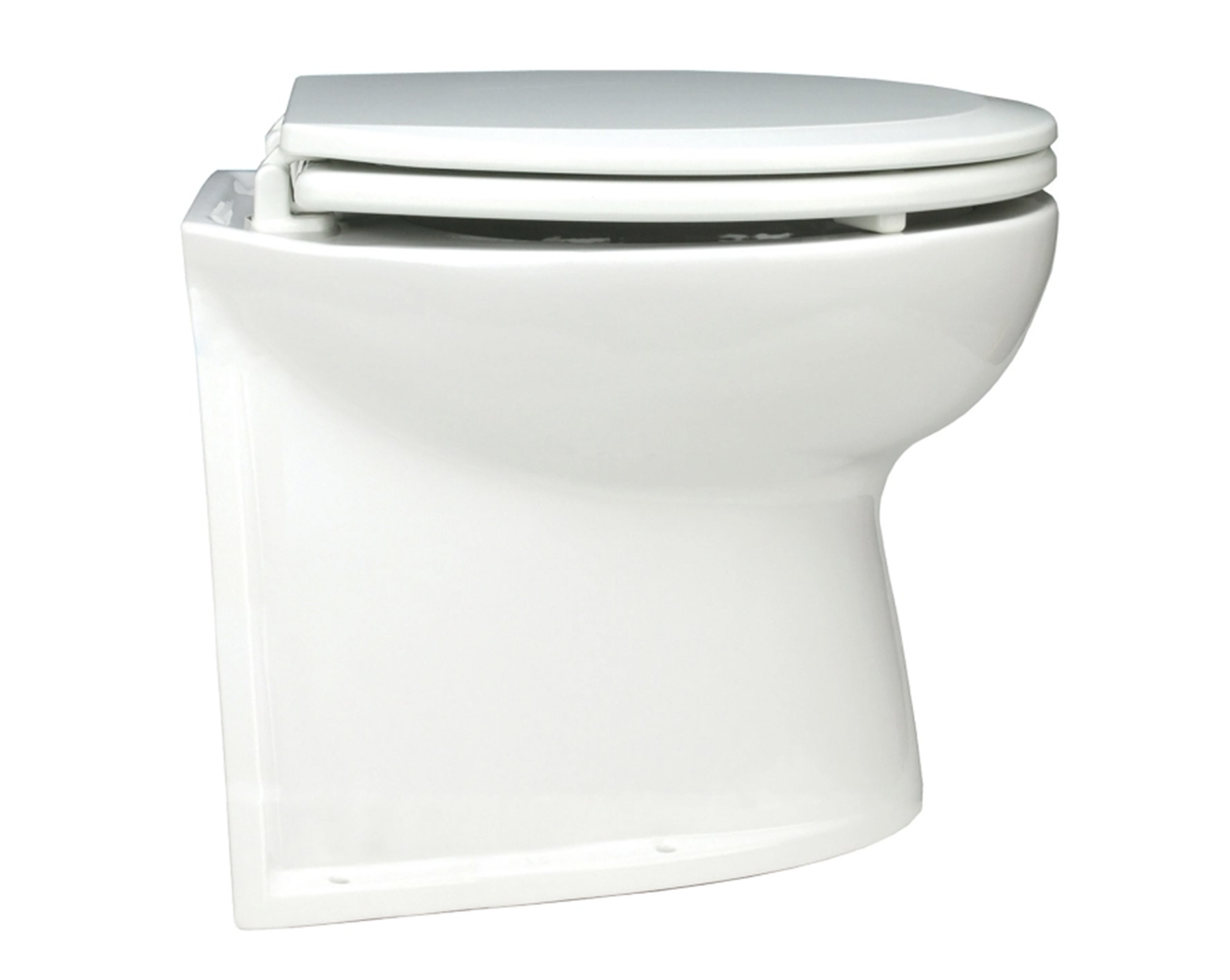

Jabsco 58280-3012 Deluxe 14 Inch Electric Toilet System
The Jabsco 58280-3012 is a deluxe 12V electric marine toilet designed to bring a household-style experience onboard. Its straight 14 inch back is made for mounting neatly against a vertical bulkhead, while the vitreous china bowl hides plumbing and wiring for a clean, hygienic finish. A quiet raw water flush pump and a powerful macerator discharge pump support efficient flushing and evacuation.
Application
- Marine electric toilet for use with sea, river, or lake water
- Supports salt water and fresh water flushing
- Straight 14 inch back for mounting against vertical bulkheads
- Can be installed up to 1 meter (3 feet) below the waterline
- Owner-selectable wet bowl or dry bowl option after use
Compatibility
- Compatible with 19 mm inlet hose connections
- Compatible with 38 mm waste outlet hose connections
- Replaces Jabsco 58280-0012
- Replaces Jabsco 58280-1012
- Replaces Jabsco 58280-2012
Technical Specifications
Voltage 12 V DC Current Consumption 20 A Fuse Size 25 A Water Consumption Approx. 1 liter per rinse Water Consumption Approx. 1.0 to 2.5 L per flushing Inlet Connection 19 mm (3/4 inch) hose Waste Outlet Connection 38 mm (1-1/2 inch) hose Dimensions Height 36.6 cm, Width 37.5 cm, Depth 45.0 cm Dimensions 366 mm high, 375 mm wide, 475 mm long Weight 27 kg Actual Weight 26.00 kg Shipping Weight 70.00 kg Packaged Dimensions 58.00 cm (L) x 63.00 cm (H) x 50.00 cm (W) Color White Material Porcelain Barcode 671880638715 Order Number 00320736 Supplier Code 58280-3012 Product Portfolio Electric Toilets
Product Details
- Toilet type: Deluxe electric toilet with macerator discharge pump
- Flush system: Quiet raw water flushing
- Bowl: Pure white vitreous china bowl that conceals plumbing and wiring
- Control: One-touch control panel
- Flush pump: Includes PAR-MAX 2.9 flush pump for remote mounting
- Strainer: Includes Pumpgard strainer
- Seat: Soft-close seat and lid
Features
- Low-noise operation for a more comfortable onboard experience
- Compact vertical back design for neat bulkhead installation
- Powerful macerator pump breaks up waste for efficient evacuation
- Touchpad control with four rinsing options
- Selectable wet bowl or dry bowl option after use
-
