ID
1331508
$ 1,401.80
1-2 weeks delivery time
-
+
The Jabsco 58500-0012 Lite Flush 12V electric marine toilet system with foot switch delivers a compact, lightweight upgrade for onboard heads, combining a ceramic bowl with a plastic casing for durable, easy-clean operation. Its quiet integral rinse and waste pump system supports seawater flushing with low water usage of 1.2 liters per flush, while 19 mm inlet and 38 mm drain hose connections simplify installation. Designed for efficient 12V DC operation, it also supports retrofit replacement of existing Jabsco manual toilets using existing pipework and mounting bolts.
- Description
- Ask a Question
-

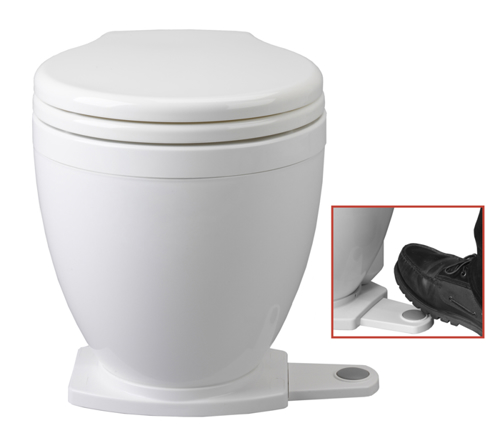

Jabsco 58500-0012 Lite Flush 12V Electric Marine Toilet System
The Jabsco Lite Flush is a compact electric toilet designed to modernize an onboard head with convenient foot-switch control and efficient, quiet flushing performance. Built with a ceramic bowl and a plastic outer casing, it is intended for straightforward maintenance and a clean, contemporary appearance on board.
Application
- Marine electric toilet solution for replacing existing manual toilets or upgrading marine heads
- Designed to retrofit existing Jabsco manual toilets using existing pipework and mounting bolts
- Seawater flushing capability
Technical Specifications
Supplier Code 58500-0012 Order Number 00320378 Barcode 671880594189 Voltage 12 V DC Maximum Current 20 A Fuse Size 25 A Water Use Per Flush 1.2 liters (1.3 US quarts) Water Use Per Flush (Alternative Stated Range) Approximately 1–2 liters Inlet Hose Connection 19 mm (3/4 inch) Drain Hose Connection 38 mm (1-1/2 inch) Dimensions (H x W x D) 373 x 401 x 402 mm Weight 14.2 kg Color White Standards Meets USCG 183.410 and ISO 8846 Marine ignition protection standards
Product Details
- Bowl: Ceramic / porcelain
- Casing: Plastic
- Seat and Lid: White Duroplast slow-closing seat and lid (also described as a composite seat and cover with soft-close function)
- Pump System: Integral rinse and waste pump system with quiet operation
- Rinse Pump: Self-priming rinse pump; integrated self-priming PAR-MAX 3 pump for seawater flushing
- Discharge Pump: Centrifugal discharge pump to break up and evacuate wastewater
Features
- Foot-switch flushing control for easy operation
- Two-step control option: press once to fill the bowl (wet or dry option), press again to flush
- One-touch sequence description: first press delivers approximately 0.6 liters of rinse water; second press delivers approximately 0.6 liters and activates the disposal pump
- Compact, lightweight design for easier installation and retrofitting
- Low water usage and low power consumption for efficient onboard operation
- Flush pump design intended to help reduce blockages
- Includes base-mounted one-touch foot switch with control box
-
