ID
1331505
$ 1,523.28
1-2 weeks delivery time
-
+
The Jabsco 58260-3024 deluxe angled electric toilet delivers quiet 24V operation with a one-touch control panel and four rinse options, using approximately 1.0 to 2.5 liters of water per flush. It includes a PAR-MAX 2.9 self-priming pump for raw-water bowl rinsing from sea, lake, or river sources, plus a high-performance waste pump with a mechanical seal for efficient discharge. A compact white glass-ceramic bowl helps conceal plumbing and wiring, while the soft-close composite seat enhances onboard comfort; hose connections are provided for 19 mm inlet and 38 mm waste outlet lines.
- Description
- Ask a Question
-

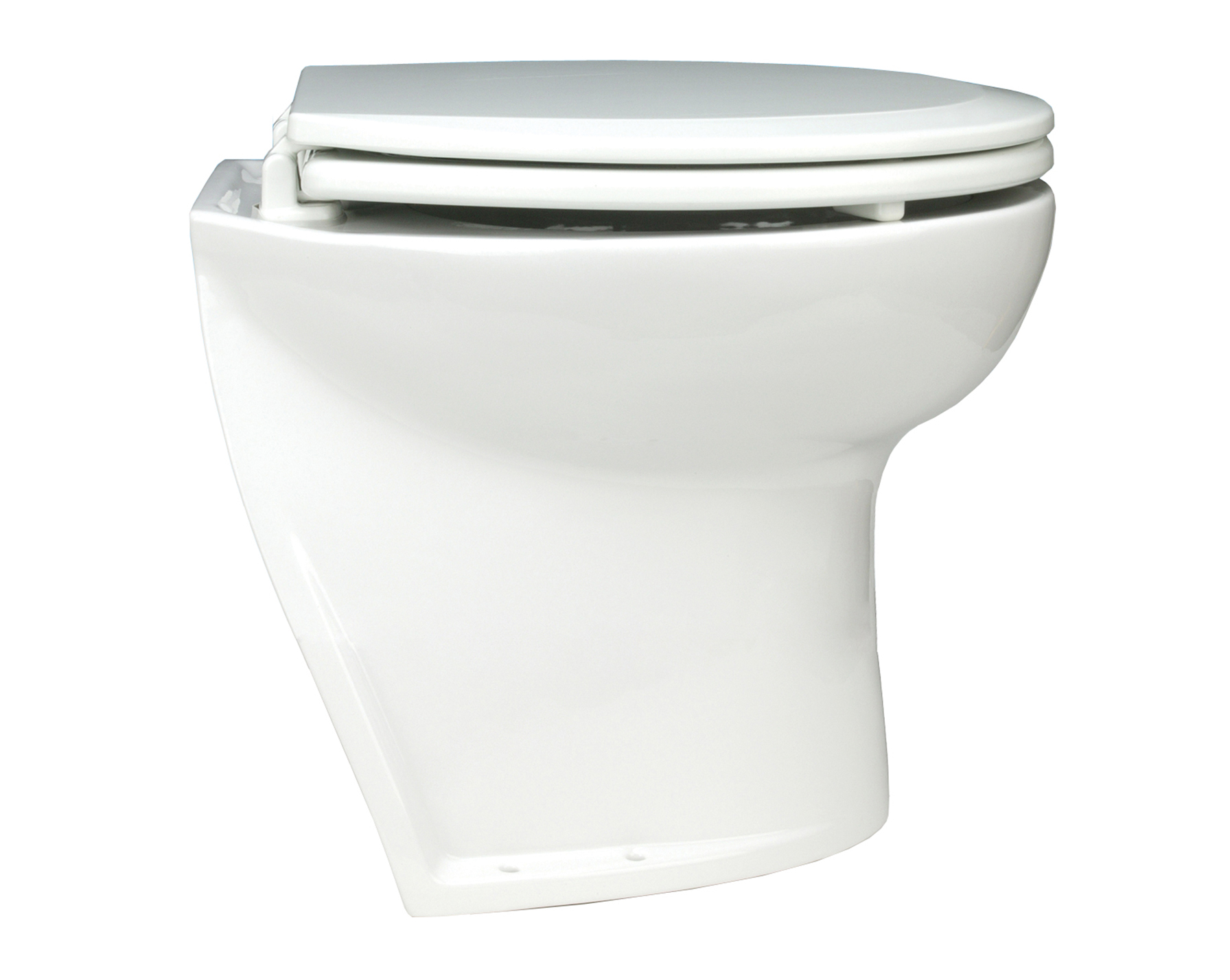

Jabsco 58260-3024 Deluxe Angled 24V Electric Toilet System
The Jabsco 58260-3024 is a deluxe 14 inch electric toilet designed for marine (and RV) installations where a compact, clean-looking setup and quiet flushing are important. Its angled-back design supports easier installation against sloping surfaces, while the included flush pump and touchpad control help deliver a refined, household-style user experience onboard.
Application
- Angled electric toilet installation for sloping surfaces
- Raw-water rinsing from sea, lake, or river sources (with included flush pump)
- Can use either salt water or fresh water
- Compatible with a remote-mounted automatic pressurised water pump delivering at least 11 liters per minute (as stated)
Compatibility
- Replaces Jabsco 58260-0024
- Replaces Jabsco 58260-1024
- Replaces Jabsco 58260-2024
Technical Specifications
Supplier Code 58260-3024 Order Number 00320735 Barcode 671880640039 Voltage 24 Volts Current Consumption 10 A Recommended Fuse 15 A Water Consumption Approx. 1.0 to 2.5 liters per flush (also stated: 1 liter per complete rinse) Inlet Connection 19 mm hose connection (3/4 inch) Waste Outlet Connection 38 mm hose connection (1 1/2 inch) Dimensions (Approx.) Width 37.5 cm; Depth 45.0 cm; Height 36.6 cm (to top of closed cover) Dimensions (As Stated) 366 mm high; 375 mm wide; 475 mm long Packed Dimensions (As Stated) 58.00 cm length; 63.00 cm height; 50.00 cm width Weight (As Stated) 26 kg Packed Weight (Approx.) 24.00 kg Shipping Weight (As Stated) 70.00 kg Color White Material (As Stated) Porcelain Seat and Lid Soft closing
Product Details
- Control: Touchpad / one-touch panel with four rinsing options
- Flush Pump Included: PAR-MAX 2.9 self-priming pump for raw-water rinsing
- Waste Discharge: High-performance waste pump with a mechanical seal
- Bowl Design: Compact white glass ceramic bowl; bowl design stated to conceal plumbing and wiring
- Seat: Composite soft-close seat and cover (optional enamelled white wooden seat and cover stated as available)
- Installation: Angled back for easier fitment against sloping surfaces
- Included Items: PAR-MAX 2.9 flushing pump, control panel with wall bracket, and black box
- Rinse (As Listed in General Specifications): Drinking water pump
Features
- Quiet operation with a household-style flush cycle
- Low water consumption (as stated)
- Supports salt-water or fresh-water use
- Concealed plumbing and wiring for a clean installation appearance
-
