The Jabsco 58260-3012 angled deluxe 12V electric toilet delivers a quiet flush cycle with a one-touch panel and four rinsing options, while keeping water use low at about 1.0 to 2.5 liters per flush. It includes a PAR-MAX 2.9 self-priming flush pump for raw-water bowl rinsing (sea, lake, or river water) and uses a compact white glass ceramic bowl that conceals plumbing and wiring. With a soft-close composite seat, 19 mm inlet and 38 mm waste outlet connections, and 20A current draw with a 25A fuse, it is a practical upgrade that replaces Jabsco 58260-0012, 58260-1012, and 58260-2012.
- Description
- Ask a Question
-

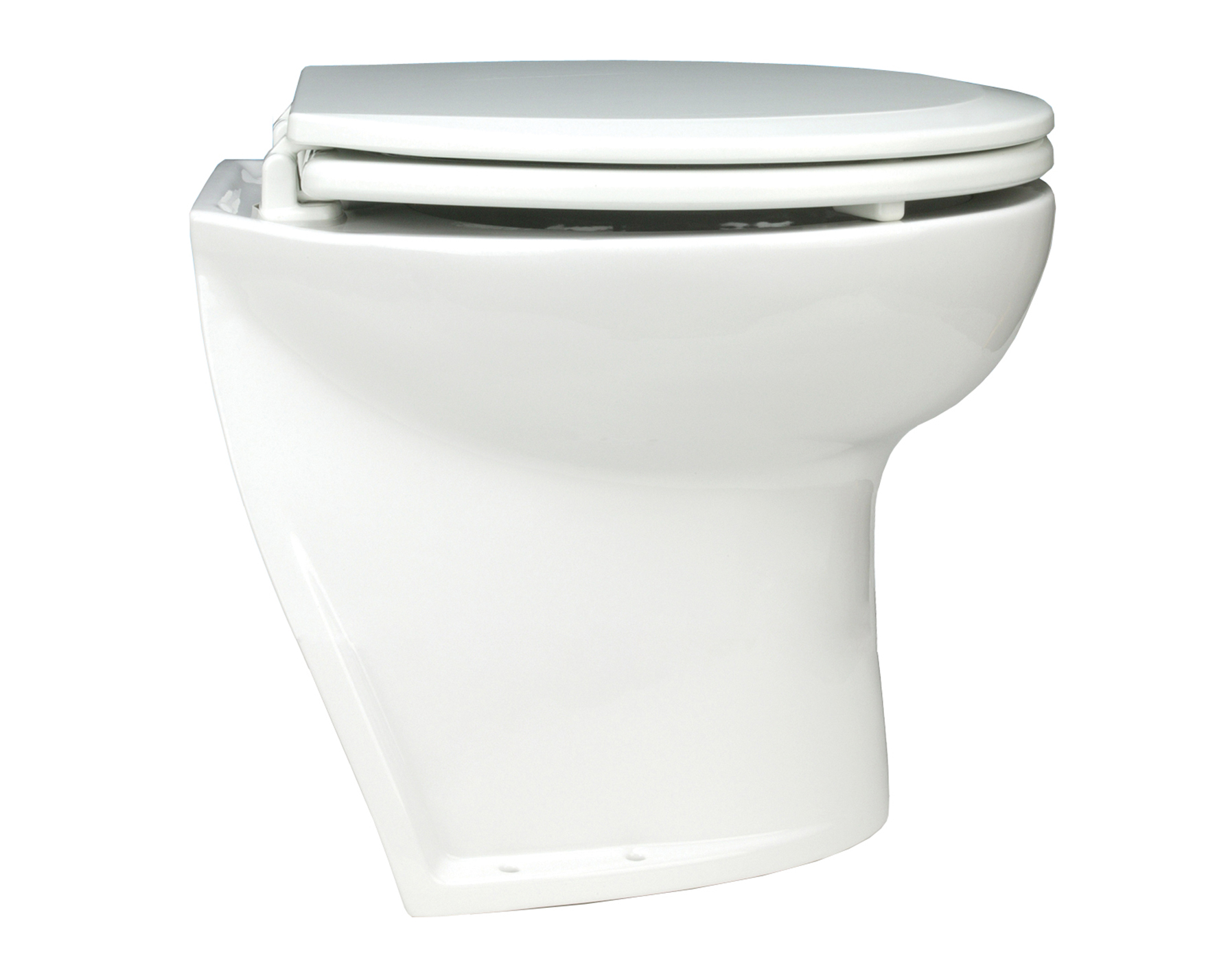

Jabsco 58260-3012 Angled 12V Deluxe Electric Toilet System
The Jabsco 58260-3012 is a premium angled electric toilet designed for marine and RV use, combining a compact footprint with a quiet flush cycle and modern touchpad control. Supplied with a dedicated flush pump for raw-water rinsing, it supports efficient operation while maintaining a clean, hygienic installation with concealed plumbing and wiring.
Application
- Marine use
- RV use
- Angled back for easier mounting against sloping surfaces
- Raw-water bowl rinsing: sea water, lake water, or river water
- Can be operated with salt water or fresh water
Compatibility
- Replaces Jabsco 58260-0012
- Replaces Jabsco 58260-1012
- Replaces Jabsco 58260-2012
Technical Specifications
Brand Jabsco Supplier Code 58260-3012 Order Number 00320734 Product Portfolio Electric Toilets Voltage 12 Volts Current Consumption 20A Fuse 25A Water Consumption Approximately 1.0 to 2.5 liters per flush Water Consumption (General Specification) 1 liter per complete rinse Inlet Connection 19 mm (3/4 inch) flushing pump hose Waste Outlet Connection 38 mm (1-1/2 inch) Dimensions (Approx.) Width 37.5 cm, Depth 45.0 cm, Height 36.6 cm (to top of closed cover) Dimensions 366 mm high, 375 mm wide, 475 mm long Weight (General Specification) 26 kg Actual Weight (Approx.) 27.00 kg Packed Weight (Approx.) 29.00 kg Packaged Dimensions 58.00 cm length, 63.00 cm height, 50.00 cm width Shipping Weight 70.00 kg Color White Material Porcelain
Product Details
- Control: Touchpad / one-touch panel with four rinsing options
- Flush Pump Included: PAR-MAX 2.9 self-priming pump for raw-water rinsing
- Flush Pump Requirement: Must deliver at least 11 liters per minute
- Waste Pump: High-performance waste pump featuring a mechanical seal
- Bowl: Compact, hygienic white glass ceramic bowl that conceals plumbing and wiring
- Bowl Material (Also Stated): White vitreous china
- Seat and Lid: Composite soft-close seat and cover
- Operation Note: Uses less than 1 amp per hour per day
- After-Use Option: Bowl wet or dry setting available
- Included: PAR-MAX 2.9 flushing pump, control panel with wall bracket, and black box
Features
- Quiet operation with a household-style flush cycle
- Low water usage for efficient onboard freshwater management
- Angled back supports flexible installation on sloping surfaces
- Clean look with concealed plumbing and wiring
- Soft-close seat enhances comfort and reduces noise
-
