ID
1331507
$ 1,661.94
1-2 weeks delivery time
-
+
The Jabsco 58280-3024 deluxe electric marine toilet delivers 24V DC flushing comfort with a 14 inch straight (vertical) back for installations against vertical bulkheads. It uses a remote-mounted raw water intake flush pump (PAR-MAX 2.9) with a Pumpgard strainer, plus a powerful macerator discharge pump for efficient waste evacuation. A soft-close seat, concealed plumbing and wiring, and a one-touch touchpad control (with multiple rinse options and a bowl dry option) enhance onboard usability, while 19 mm inlet and 38 mm waste outlet hose connections support standard marine plumbing layouts.
- Description
- Ask a Question
-

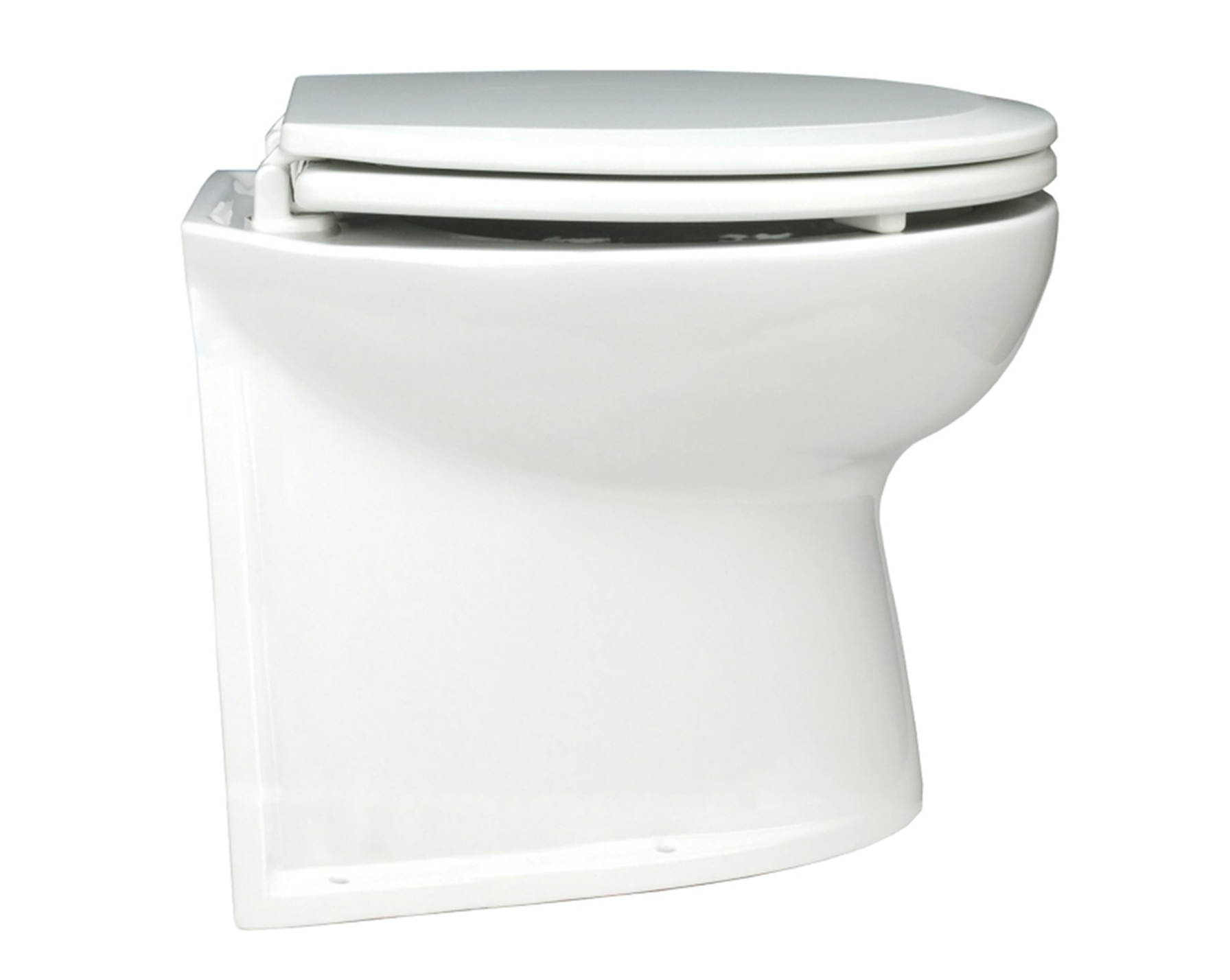

Jabsco 58280-3024 Deluxe 24V Electric Marine Toilet System
The Jabsco 58280-3024 is a deluxe 14 inch electric toilet built to bring household-style comfort to marine sanitation systems. Designed for raw water flushing, it pairs a remote-mounted intake pump with a high-performance waste macerator pump, while keeping plumbing and wiring neatly concealed for a clean, modern installation.
Application
- Marine electric toilet for raw water flushing
- Suitable for sea water, river water, and lake water flushing
- Can be used with salt water or fresh water
- Mountable up to 1 meter (3 feet) below the waterline
- 14 inch straight (vertical) back for fitting against vertical bulkheads
Compatibility
- Replaces Jabsco 58280-0024
- Replaces Jabsco 58280-1024
- Replaces Jabsco 58280-2024
Technical Specifications
Supplier Code 58280-3024 Order Number 00320737 Operating Voltage 24 Volts DC Current Consumption 10 A Fuse 15 A Water Consumption Approximately 1 litre per complete rinse cycle; approximately 1.0 to 2.5 L per flush Inlet Hose Connection 19 mm (3/4 inch) Waste Outlet Hose Connection 38 mm (1 1/2 inch) Product Dimensions (H x W x D) 366 x 375 x 450 mm Packed Dimensions (L x H x W) 58 x 63 x 50 cm Product Weight 27 kg; approximately 26 kg also listed Packed Weight 28 kg Shipping Weight 70.00 kg Color White Bowl Material Porcelain (vitreous china) Product Portfolio Electric Toilets
Product Details
- Remote-mounted flush pump: Includes a PAR-MAX 2.9 pump for raw water intake
- Strainer: Pumpgard strainer included to help protect the system
- Discharge system: Powerful macerator discharge pump to break up and evacuate waste efficiently
- Control: One-touch touchpad control panel with four rinse options and a bowl drying option
- Seat: Soft-close seat and lid; composite seat and cover
- Installation finish: Concealed plumbing and wiring for a streamlined appearance
Features
- Low-noise operation for improved onboard comfort
- Deluxe 14 inch format with straight (vertical) back design
- Designed for raw water flushing with remote-mounted intake pump arrangement
-
