ID
1331511
$ 534.83
1-2 weeks delivery time
-
+
The Jabsco 58540-1012 12V waste pump kit provides efficient, reliable flushing and waste removal performance for the Jabsco Lite Flush toilet series 58500. Built for marine, RV, and off-grid use, it combines corrosion-resistant components with a compact design, low power consumption, and a sealed motor with thermal overload protection to support long-term operation with minimal maintenance. The assembly is designed for smooth, consistent handling of liquid and solid waste and is specified with performance figures including up to 25 liters per minute flow (depending on installation), 4 meters maximum suction lift, and 2.5 bar discharge pressure.
- Description
- Ask a Question
-

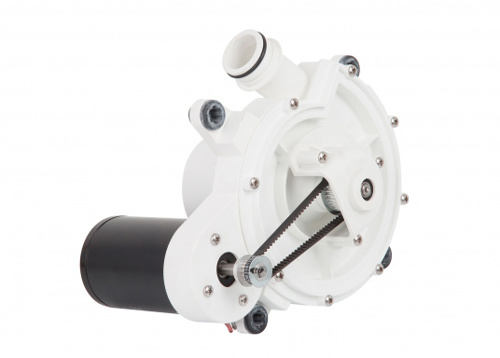

Jabsco 58540-1012 Lite Flush 12V Waste Pump Kit
The Jabsco 58540-1012 is a 12V pump assembly kit designed as a compatible replacement for the Jabsco Lite Flush toilet series 58500. It supports efficient and reliable flushing and waste removal in marine toilet systems, while also being described for use in RV and other off-grid waste pumping applications.
Compatibility
- Compatible with Jabsco Lite Flush toilet series 58500
Application
- Marine toilet waste removal and flushing performance support
- Waste pumping use in marine, RV, and off-grid applications
Technical Specifications
Voltage 12V DC Flow Rate Up to 25 liters per minute (depending on installation) Maximum Suction Lift 4 meters (13 feet) Discharge Pressure 2.5 bar (36.25 psi) Packaged Dimensions L: 15.00 cm x H: 15.00 cm x W: 15.00 cm Weight 4.00 kg Packed Weight Approx. 4.50 kg Shipping Weight 3.50 kg Motor Protection Sealed motor with thermal overload protection Power Consumption Low power, optimized for efficient use Materials Corrosion-resistant components Barcode 671880597784 Order Number 00320361 Supplier Code 58540-1012
Product Details
- Product Type: Pump kit / waste pump assembly / pump assembly kit
- Integration: Engineered for seamless integration with Jabsco toilet systems
- Waste Handling: Designed for both liquid and solid waste removal
- Serviceability: Easy access for maintenance and cleaning with minimal disassembly required
- Kit Contents Reference: Pump Assembly Kit includes parts No. 11, 12, 13, and 14 of the exploded view
- Update Note: Improved version with aluminum-based pulleys
Features
- Efficient and reliable waste removal performance
- Compact design described as suitable for confined spaces
- Corrosion-resistant construction for harsh environments
- Sealed motor design for water protection
- Low power consumption for long-lasting efficiency
- Designed for reliable long-term operation with minimal maintenance needs
- Quiet and consistent operation as described
-
