The Jabsco 58500-1012 Lite Flush 12V electric marine toilet system delivers a quiet, efficient flush with an included wall-mounted dual-button control panel for easy onboard operation. Built around a durable porcelain or ceramic bowl with a plastic outer casing, it is designed for quick installation and direct retrofit to existing Jabsco manual toilets by matching fixing points, hose attachments, existing pipework, and mounting bolts. It supports seawater flushing with a self-priming rinse system, uses 1.2 liters of water per complete flush, and connects via 19 mm inlet and 38 mm drain hoses for straightforward integration.
- Description
- Ask a Question
-

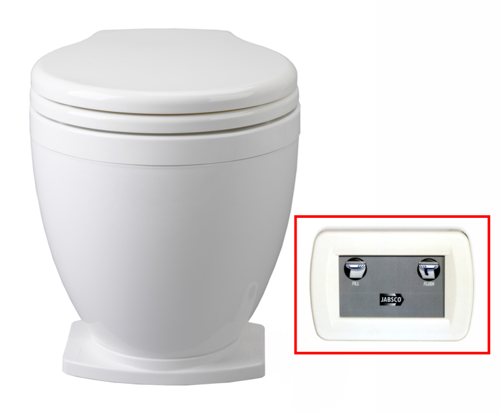

Jabsco 58500-1012 Lite Flush 12V Marine Electric Toilet System With Panel
The Jabsco 58500-1012 Lite Flush is a compact marine electric toilet designed to modernize onboard sanitation while simplifying installation. It is engineered for quick fitment and retrofit, aligning with the fixing points and hose connections used on Jabsco manual toilet models, helping you upgrade without reworking existing pipe runs.
Application
- Marine electric toilet for onboard sanitation
- Designed for quick installation and retrofit to existing Jabsco manual toilets
- Uses existing pipework and mounting bolts (as stated)
- Seawater flushing capable
Technical Specifications
Supplier Code 58500-1012 Order Number 00320379 Barcode 671880594202 Voltage 12 V Maximum Current 20 A Recommended Fuse Size 25 A Water Consumption 1.2 liters per complete flush (also stated as approximately 1–2 liters per flush) Inlet Connection 19 mm inlet hose (3/4 in) Discharge Connection 38 mm drain hose (1-1/2 in) Dimensions (H x W x D) 373 x 401 x 402 mm Dimensions (H x W x D) 37.3 x 34.2 x 40.2 cm Product Weight 14.2 kg Shipping Weight 15.00 kg Color White Materials Porcelain or ceramic bowl with plastic casing Compliance Complies with USCG 183.410 and ISO 8846 marine ignition protection
Product Details
- Control: Wall-mounted dual-button control panel (also described as a touch sensor panel)
- Flush Settings (as stated): Eco Flush, Full Flush, Empty Pump
- Rinse System: Self-priming
- Pumps: Integrated rinse and waste pump system; self-priming PAR-MAX 3 pump for seawater flushing; centrifugal discharge pump
- Seat and Lid: White, soft-close
- Construction: Lightweight and compact
Features
- Quick installation and retrofit-friendly layout using existing fixing points and hose attachments (as stated)
- Quiet flush pump with large clearances to help reduce blockages
- Low power consumption (as stated)
- Includes wall-mountable control panel (also stated as supplied with a black box)
-
