The Jabsco 58220-3024 deluxe electric marine toilet is a 24V DC system built for comfortable onboard use, combining a soft-closing seat and lid with a powerful macerator discharge pump and a remote-mounted flush pump for raw water flushing. Its slanted 17-inch back helps it fit neatly against angled bulkheads, while the white vitreous china bowl and hidden plumbing support a clean, home-style finish. With one-touch touchpad control, low water consumption (as low as 1 litre per flush), and compliance with USCG 183.410 and ISO 8846 Marine Ignition Protection, it is engineered for reliable installation and operation in marine environments.
- Description
- Ask a Question
-

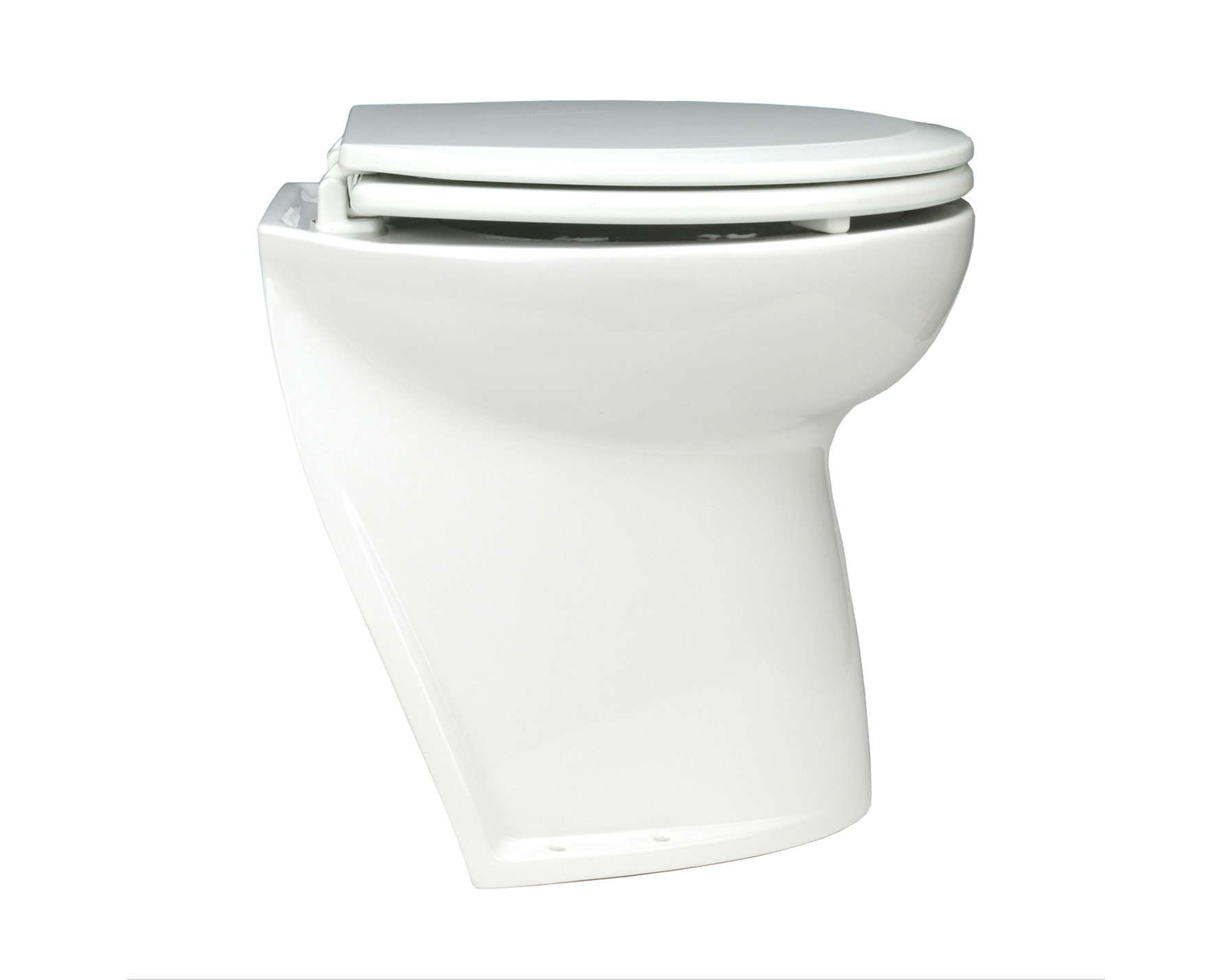

Jabsco 58220-3024 Deluxe 24V Electric Toilet System With Angled Back
The Jabsco 58220-3024 is a deluxe marine 24V DC electric toilet designed to deliver a household-style look and feel onboard. It combines an elegant vitreous china bowl with concealed plumbing and wiring, and pairs a quiet, efficient flush cycle with a remote-mounted intake pump for raw-water flushing.
Application
- Marine electric toilet system
- Raw water flushing (sea, river, lake, or salt/fresh water use stated)
- Angled bulkhead installations (slanted back design)
- Mountable up to 1 meter (3 feet) below the waterline
Compatibility
- Compatible with any remote-mounted automatic pressurised water pump delivering at least 11 litres per minute
- Replaces model Jabsco 58220-1024
- Replaces Jabsco 58220-0024
- Replaces Jabsco 58220-2024
Technical Specifications
Model 58220-3024 Supplier Code 58220-3024 Order Number 00320729 Barcode 671880639989 Voltage 24 Volts DC Fuse Rating 15A Current Consumption 10A (also stated: less than 1 amp per day; less than 1 amp/hour per day) Dimensions (H x W x D) 445 x 375 x 475 mm Additional Dimensions Stated 447 mm height; 375 mm width; 475 mm length; approx. 44 cm (17 inches) height to top of lid; approx. 44.5 cm to top of closed cover Connections 19/38 mm Inlet Port Size 19 mm (3/4 inch) ID Outlet Port Size 38 mm (1-1/2 inch) ID Water Consumption 1 litre per complete rinse (also stated: approx. 1.0 2.5 litres per flush; as low as 1 litre per flush) Product Weight 26 kg (also stated: approximately 22 kg; approximately 24 kg when packed) Packaged Dimensions 58 x 63 x 50 cm Shipping Weight 70.00 kg Color White Material Porcelain (vitreous china bowl stated) Approvals Complies with USCG 183.410 and ISO 8846 Marine Ignition Protection Country of Origin United Kingdom Warranty 1 Year
Product Details
- Seat and Lid: Soft closing
- Back Design: Slanted 17-inch back for angled bulkheads
- Flush Control: One-touch control panel (also stated: touchpad control with four rinsing options)
- Discharge: Powerful macerator waste pump for breaking down and clearing waste
- Flush Pump: Remote-mounted pump for water intake; supplied with PAR-MAX 2.9 self-priming flushing pump for remote mounting
- Finish: Hidden plumbing and wiring for a clean installation appearance
Features
- Soft-close seat and lid for quiet, comfortable use
- Low-noise operation stated
- Efficient rinsing with low water usage
- Vitreous china bowl for hygiene, durability, and easy cleaning
- Remote flush pump configuration supports flexible installation
-
