The Jabsco 58220-3012 deluxe electric marine toilet delivers a quiet, household-style flush in a 12V system, combining an angled back for sloping bulkheads with a soft-closing seat and lid. It supports sea, lake, river, salt, or fresh water flushing and includes a remote-mounted PAR-MAX 2.9 flush pump plus a powerful macerator discharge pump for efficient waste removal. With a white vitreous china bowl, 19 mm inlet and 38 mm discharge connections, and low water usage stated as 1 litre per complete rinse (also listed as approx. 1.0–2.5 L per flush), it provides premium onboard comfort in a compact footprint.
- Description
- Ask a Question
-

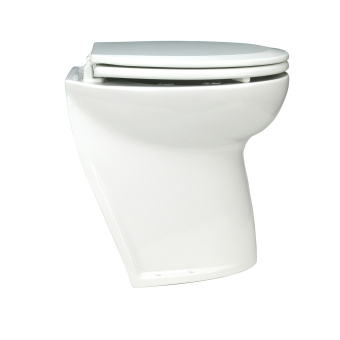

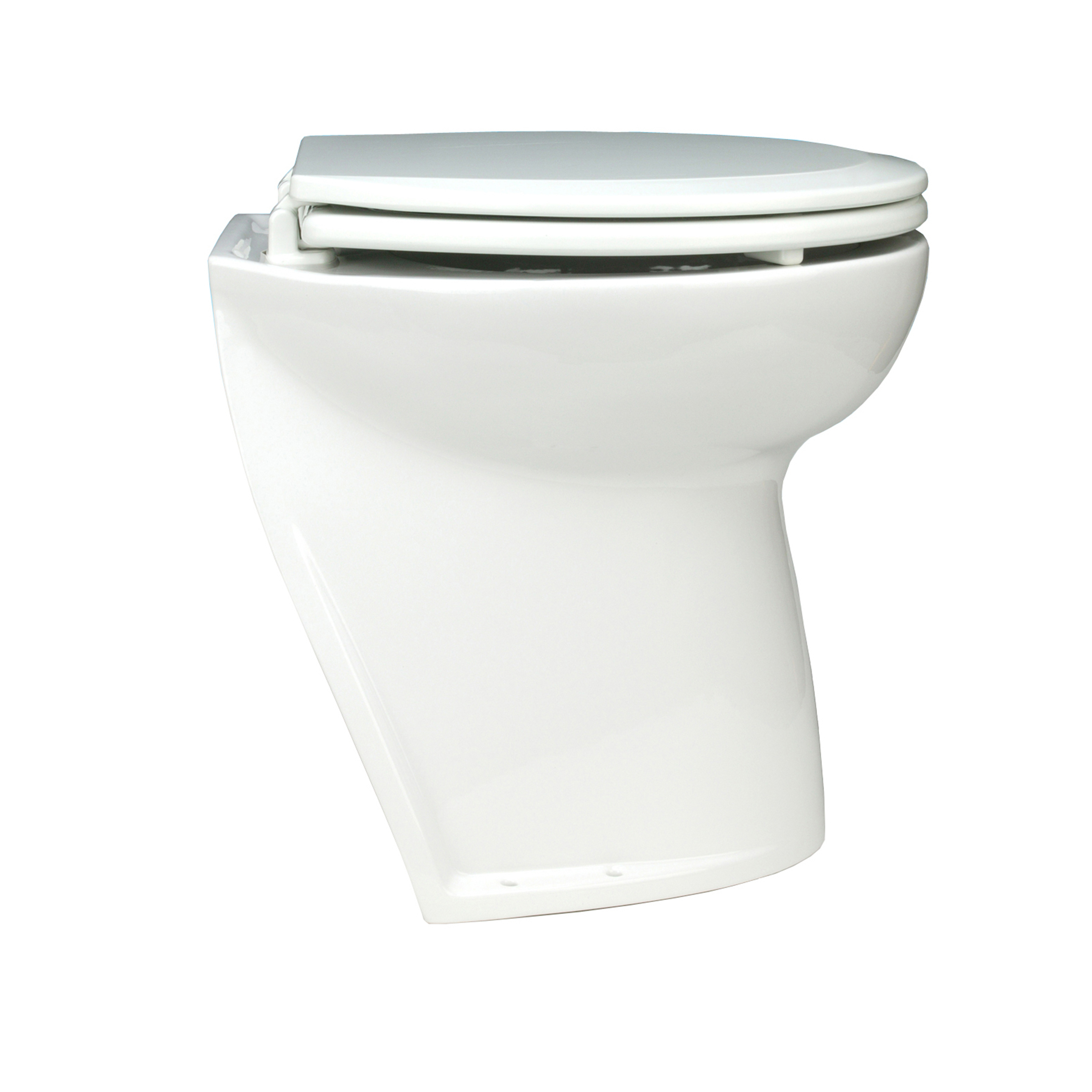

Jabsco 58220-3012 Deluxe 12V Electric Marine Toilet With Angled Back
The Jabsco 58220-3012 is a deluxe electric marine toilet designed to bring a premium, household-style experience on board. Its angled back helps it fit neatly against sloping or angled bulkheads, while concealed plumbing and wiring support a clean installation appearance. A soft-closing seat and lid, a vitreous china bowl, and a remote-mounted flush pump combine comfort with practical marine-ready performance.
Application
- Marine electric toilet for sea, lake, or river water flushing
- Suitable for salt or fresh water flushing
- Angled bulkhead installations (17 inch slanted back)
- Installable up to 1 meter (3 feet) below the waterline
Compatibility
- Replaces Jabsco 58220-0012
- Replaces Jabsco 58220-1012
- Replaces Jabsco 58220-2012
Technical Specifications
Brand Jabsco Supplier Code 58220-3012 Order Number 00320728 Barcode 671880639972 Product Portfolio Electric Toilets Voltage 12 Volts Current Consumption 20A Recommended Fuse 25A Energy Use Less Than 1 amp/hr per day Water Consumption 1 litre per complete rinse (also listed as approx. 1.0–2.5 L per flushing) Connections 19/38 mm Inlet Hose 19 mm (3/4 inch) bore Discharge Hose 38 mm (1 1/2 inch) bore Dimensions (H x W x D) 445 x 375 x 475 mm Additional Dimensions Listed Width approx. 37.5 cm; Depth approx. 45.0 cm; Height approx. 44.5 cm to top of closed cover Packaged Dimensions (L x H x W) 58 x 63 x 50 cm Product Weight 26 kg Approx. Actual Weight Listed Approx. 27.00 kg Packed Weight Listed 29.00 kg packed Shipping Weight 70,00 kg Color White Bowl Material Vitreous China (Porcelain) Seat and Lid Soft Closing
Product Details
- Flush pump: Supplied with PAR-MAX 2.9 flush pump for remote installation
- Discharge system: Powerful macerator discharge pump to break up and remove waste efficiently
- Waste pump: High-performance waste pump with mechanical seal
- Controls: One touch control panel; touchpad control unit with four rinsing options (as listed)
- Installation style: Conceals plumbing and wiring
- Bowl options: Owner-selectable option to leave the bowl wet or dry after use
Features
- 17 inch slanted back designed to fit against angled bulkheads
- Soft-close seat and lid for added comfort
- Low-noise operation with a quiet flush cycle comparable to household toilets
- Suitable for raw water flushing and listed for sea, lake, and river water supply
- White vitreous china bowl for hygienic, easy cleaning
-
