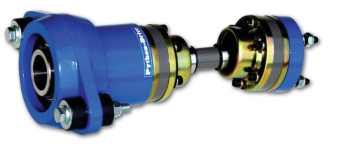

Python Drive P80-S CV Joint

1-2 weeks delivery time
Price incl. 19% VAT

Length, mm:

The Python Drive P80-S CV Joint is designed for high-power marine engines, offering exceptional performance for shafts with diameters between 30 and 45 mm. With a maximum torque of 80 Kgm (785 Nm) and a maximum stop force of 12 kN, it is ideal for 135 hp (2500 RPM) engines equipped with a 2:1 gearbox. The coupling diameter is 100 mm, and available lengths of 145 mm, 165 mm, or 195 mm provide flexibility to suit different installations. This CV joint ensures smooth torque transmission and reliable performance under heavy load conditions, making it perfect for demanding marine applications.

Description
Ask a Question

Python Drive P80-S CV Joint

The Python Drive P80-S CV Joint is designed to handle high-power marine engines, providing reliable torque transmission and exceptional durability. Compatible with shafts ranging from 30 to 45 mm in diameter, the P80-S CV Joint offers a maximum torque of 80 Kgm (785 Nm) and a maximum stop force of 12 kN. It is ideal for 135 hp (2500 RPM) engines with a 2:1 gearbox ratio. The coupling diameter is 100 mm, with the option to choose from three lengths: 145 mm, 165 mm, or 195 mm, ensuring a flexible and adaptable installation. This CV joint is engineered for smooth operation even under demanding conditions, making it the perfect solution for marine propulsion systems that require high performance and reliability.

Features:

Compatible with shafts with diameters from 30 to 45 mm
Maximum torque capacity: 80 Kgm (785 Nm)
Maximum stop force: 12 kN
Suitable for 135 hp (2500 RPM) engines with a 2:1 gearbox ratio
Coupling diameter: 100 mm
Available in lengths of 145 mm, 165 mm, or 195 mm
Reduces vibrations and ensures smooth torque transmission
Built for heavy-duty marine applications

Part Numbers:

Exalto Catalog Parts: P80-S.R.145, P80-S.R.165, P80-S.R.195

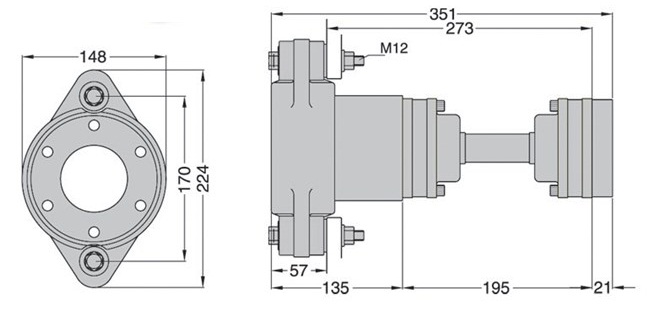

Dimensions and Technical Data:

Part Number	Length	Coupling Diameter	Max Torque	Max Stop Force	Engine Power
P80-S.R.145	145 mm	100 mm	80 Kgm (785 Nm)	12 kN	135 hp (2500 RPM)
P80-S.R.165	165 mm	100 mm	80 Kgm (785 Nm)	12 kN	135 hp (2500 RPM)
P80-S.R.195	195 mm	100 mm	80 Kgm (785 Nm)	12 kN	135 hp (2500 RPM)

The coupling can be ordered separately. Contact our consultants for more information.
