ID
1351221
$ 5,011.87
1-2 weeks delivery time
-
+
The Python Drive P200-Q Complete Shaft Drive System is a marine propulsion drive unit designed for installations with a 3:1 reverse coupling, suitable for engines up to 200 HP at 2200 RPM. It supports shaft diameters from 45 to 60 mm and delivers maximum torque of 1960 Nm and maximum thrust of 22 kN. The system features a homokinetic (CV) joint diameter of 148 mm, pitch circle diameter of 128 mm, and a maintenance-free CV joint drive shaft with thrust bearing assembly designed to transfer propeller thrust to the hull while maintaining smooth shaft rotation even at varying shaft angles.
- Description
- Ask a Question
-

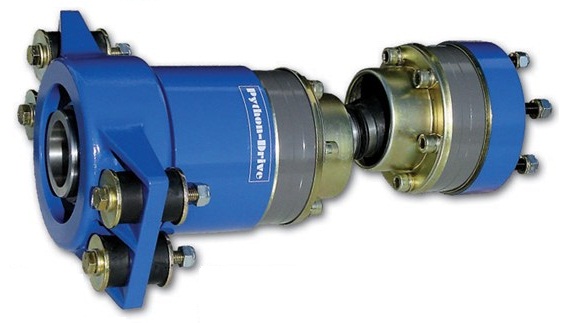

Python Drive P200-Q Complete Shaft Drive System – for 3:1 Reverse Coupling, Shaft Diameter 45–60 mm, Max Torque 1960 Nm, Max Thrust 22 kN
The Python Drive P200-Q Complete Shaft Drive System is designed for marine propulsion installations on yachts and workboats requiring high torque transmission and reliable thrust management. The system is compatible with a 3:1 reverse coupling and suitable for engines up to 200 HP at 2200 RPM.
The drive unit supports shaft diameters from 45 to 60 mm and incorporates a maintenance-free CV joint drive shaft together with a robust thrust bearing assembly. This configuration transfers propeller thrust smoothly to the hull while allowing the propeller shaft to rotate uniformly even at unequal shaft angles.
Key Features
- Product Number: P200-Q
- Brand: Python
- Sales Unit: 1 piece
- Compatible with: 3:1 reverse coupling
- Suitable engine power: up to 200 HP at 2200 RPM
- Shaft diameter range: 45–60 mm
- Maintenance-free CV joint drive shaft
- Large thrust bearing assembly for transferring propeller thrust to the hull
Technical Specifications
Model P200-Q EAN Code 8720193045856 Shaft Diameter Range 45–60 mm Compatible Coupling 3:1 reverse coupling Suitable Engine Output / Speed 200 HP / 2200 RPM Maximum Torque 1960 Nm Maximum Thrust 22 kN Homokinetic / CV Joint Diameter 148 mm Pitch Circle Diameter 128 mm Sales Unit 1 piece

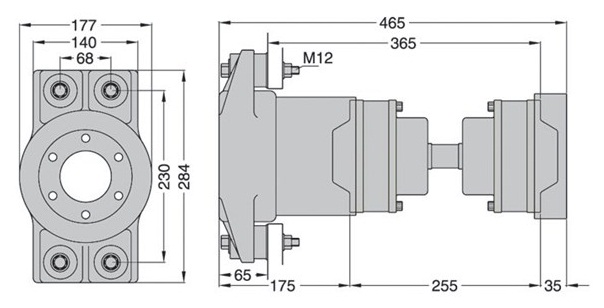

System Design
- Maintenance-free CV joint drive shaft
- Large thrust bearing mounted using a clamping ring
- Rubber suspension system for transferring thrust pressure to the hull
- Short installation length for flexible installation
- Complete installation set including adapter flange, homokinetic drive shaft, thrust bearing unit, bolts, nuts, lock washers, and rubber elements
Typical Applications
- Yachts
- Sloops
- Workboats
- Marine propulsion systems with shaft diameters between 45 and 60 mm
-
