ID
1351223
$ 8,679.08
1-2 weeks delivery time
-
+

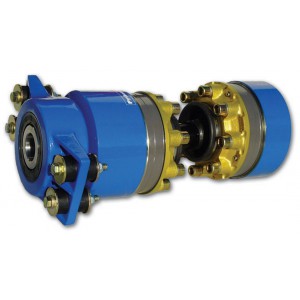

The Python Drive P501-Q Complete Shaft Drive System is a marine propulsion drive unit designed for installations with a 2.5:1 reverse coupling, suitable for engines up to 430 HP at 2300 RPM. It supports shaft diameters from 55 to 60 mm and delivers maximum torque of 4900 Nm and maximum thrust of 22 kN. The system features a CV joint diameter of 191.8 mm, pitch circle diameter of 165 mm, and a maintenance-free CV joint drive shaft with thrust bearing assembly designed to transfer propeller thrust to the hull while maintaining smooth shaft rotation and reducing wear.
- Description
- Ask a Question
-
Python Drive P501-Q Complete Shaft Drive System – for 2.5:1 Reverse Coupling, Shaft Diameter 55–60 mm, Max Torque 4900 Nm, Max Thrust 22 kN
The Python Drive P501-Q Complete Shaft Drive System is designed for marine propulsion installations requiring high torque transmission and reliable thrust management. The system is compatible with a 2.5:1 reverse coupling and suitable for engines up to 430 HP at 2300 RPM.
The drive unit supports shaft diameters from 55 to 60 mm and incorporates a maintenance-free CV joint drive shaft combined with a robust thrust bearing assembly. This configuration allows propeller thrust to be transferred smoothly to the hull while maintaining stable and uniform rotation of the propeller shaft.
Key Features
- Product Number: P501-Q
- Brand: Python
- Sales Unit: 1 piece
- Compatible with: 2.5:1 reverse coupling
- Suitable engine power: up to 430 HP at 2300 RPM
- Shaft diameter range: 55–60 mm
- Variable shaft diameter: Yes
- Maintenance-free CV joint drive shaft
- Large thrust bearing assembly designed to transfer propeller thrust to the hull
Technical Specifications
Model P501-Q EAN Code 8720193046013 Shaft Diameter Range 55–60 mm Compatible Coupling 2.5:1 reverse coupling Suitable Engine Output / Speed 430 HP / 2300 RPM Maximum Torque 4900 Nm Maximum Thrust 22 kN CV Joint Diameter 191.8 mm Pitch Circle Diameter 165 mm Variable Shaft Diameter Yes Sales Unit 1 piece
System Design
- Maintenance-free CV joint drive shaft
- Robust thrust bearing system
- Designed to maintain uniform shaft rotation even at unequal angles
- Compact installation design for easier integration
- Installation materials included such as adapter flange, drive shaft, thrust bearing unit, bolts, nuts, lock washers, and rubber elements
Typical Applications
- Yachts
- Workboats
- Marine propulsion systems with shaft diameters between 55 and 60 mm
-
