The Python Drive P200-T Complete Shaft Drive System is a marine propulsion drive unit designed for installations with a 2.5:1 reverse coupling, suitable for engines up to 250 HP at 2400 RPM. It supports shaft diameters from 40 to 60 mm and delivers maximum torque of 1960 Nm and maximum thrust of 18 kN. The system features a homokinetic (CV) joint diameter of 148 mm, pitch circle diameter of 128 mm, and a maintenance-free CV joint drive shaft with thrust bearing assembly designed to transfer propeller thrust to the hull while maintaining smooth shaft rotation even at varying angles.
- Description
- Ask a Question
-

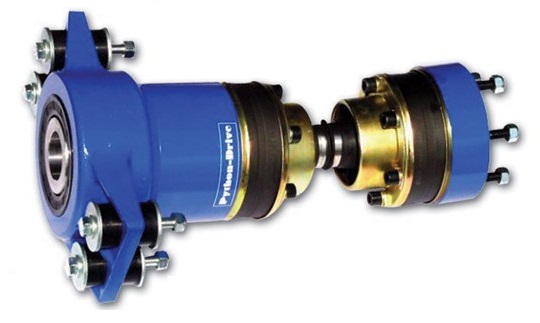

Python Drive P200-T Complete Shaft Drive System – for 2.5:1 Reverse Coupling, Shaft Diameter 40–60 mm, Max Torque 1960 Nm, Max Thrust 18 kN
The Python Drive P200-T Complete Shaft Drive System is designed for marine propulsion installations requiring high torque transmission and reliable thrust management. The system is compatible with a 2.5:1 reverse coupling and suitable for engines up to 250 HP at 2400 RPM.
The system supports shaft diameters from 40 to 60 mm and incorporates a maintenance-free CV joint drive shaft combined with a thrust bearing assembly. This configuration transfers propeller thrust smoothly to the hull while allowing the propeller shaft to rotate evenly even when operating at varying angles.
Key Features
- Product Number: P200-T
- Brand: Python
- Sales Unit: 1 piece
- Compatible with: 2.5:1 reverse coupling
- Suitable engine power: up to 250 HP at 2400 RPM
- Shaft diameter range: 40–60 mm
- Variable shaft diameter: Yes
- Maintenance-free CV joint drive shaft
- Robust thrust bearing system designed to transfer propeller thrust to the hull
Technical Specifications

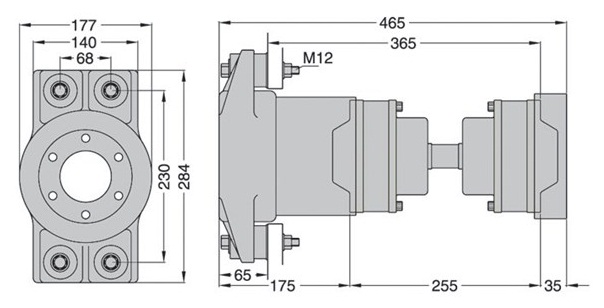

Model P200-T EAN Code 8720193045863 Shaft Diameter Range 40–60 mm Compatible Coupling 2.5:1 reverse coupling Suitable Engine Output / Speed 250 HP / 2400 RPM Maximum Torque 1960 Nm Maximum Thrust 18 kN Homokinetic / CV Joint Diameter 148 mm Pitch Circle Diameter 128 mm Variable Shaft Diameter Yes Sales Unit 1 piece
System Design
- Maintenance-free CV joint drive shaft
- Large thrust bearing assembly for controlled thrust transfer
- Designed to maintain uniform propeller shaft rotation at unequal angles
- Compact installation length for flexible installation
- Installation components included: adapter flanges, homokinetic drive shaft, thrust bearing unit, bolts, nuts, lock washers, and rubber elements
Typical Applications
- Yachts
- Workboats
- Commercial or recreational marine propulsion systems with shaft diameters between 40 and 60 mm
-
