ID
1351218
$ 2,654.36
1-2 weeks delivery time
-
+
The Python Drive P110-T Complete Shaft Drive System is a marine propulsion drive unit designed for installations with a 2:1 reversing coupling, suitable for engines up to 175 HP at 2400 RPM. It supports shaft diameters from 35 to 50 mm and delivers maximum torque of 1080 Nm and maximum thrust of 18 kN. The system features a CV joint diameter of 108 mm, pitch circle diameter of 94 mm, and a maintenance-free CV joint drive shaft with thrust bearing assembly designed to transfer propeller thrust to the hull while maintaining smooth rotation even at varying shaft angles.
- Description
- Ask a Question
-

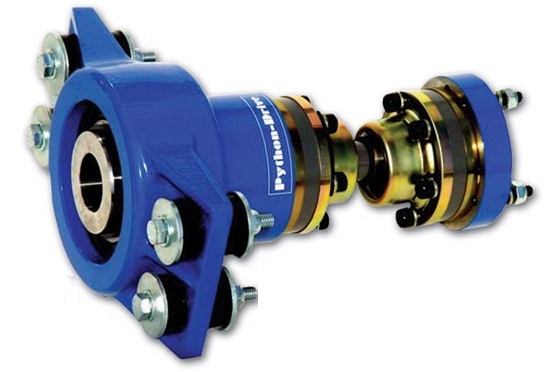

Python Drive P110-T Complete Shaft Drive System – for 2:1 Reversing Coupling, Shaft Diameter 35–50 mm, Max Torque 1080 Nm, Max Thrust 18 kN
The Python Drive P110-T Complete Shaft Drive System is designed for marine propulsion installations on yachts and workboats that require higher thrust capacity and reliable operation. The system is compatible with a 2:1 reversing coupling and suitable for engines up to 175 HP at 2400 RPM.
The drive unit supports shaft diameters from 35 to 50 mm and incorporates a maintenance-free CV joint drive shaft combined with a thrust bearing assembly. This design allows propeller thrust to be transferred smoothly to the hull through a rubber-suspended thrust bearing, while maintaining smooth rotation of the propeller shaft even at unequal angles.
Key Features
- Product Number: P110-T
- Brand: Python
- Sales Unit: 1 piece
- Compatible with: 2:1 reversing coupling
- Suitable engine power: up to 175 HP at 2400 RPM
- Shaft diameter range: 35–50 mm
- Variable shaft diameter: Yes
- Maintenance-free CV joint drive shaft
- Thrust bearing system designed to transfer propeller thrust to the hull

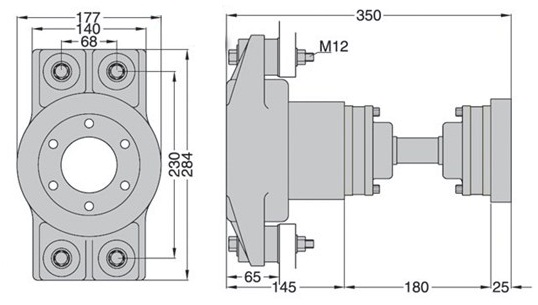

Technical Specifications
Model P110-T EAN Code 8720193045764 Shaft Diameter Range 35–50 mm Compatible Coupling 2:1 reversing coupling Suitable Engine Output / Speed 175 HP / 2400 RPM Maximum Torque 1080 Nm Maximum Thrust 18 kN CV Joint / Crown Diameter 108 mm Pitch Circle Diameter 94 mm Variable Shaft Diameter Yes Sales Unit 1 piece
System Design
- Maintenance-free CV joint drive shaft
- Large thrust bearing centered by a clamping ring
- Rubber-suspended thrust bearing to absorb axial loads
- Compact installation length
- Installation components included: adapter flange, drive shaft, thrust bearing unit, bolts, nuts, lock washers, and rubber elements
Typical Applications
- Yachts
- Sloops
- Workboats
- Marine propulsion systems with shaft diameters between 35 and 50 mm
-
