ID
1351217
$ 1,982.05
1-2 weeks delivery time
-
+
The Python Drive P110-S Complete Shaft Drive System is a marine propulsion drive unit designed for installations with a 3:1 gearbox, suitable for engines up to 135 HP at 2800 RPM. It supports shaft diameters from 35 to 45 mm and provides maximum torque of 1080 Nm and maximum thrust of 12 kN. The system features a CV joint diameter of 108 mm, pitch circle diameter of 94 mm, and a maintenance-free CV joint drive shaft with thrust bearing assembly designed to transfer propeller thrust to the hull while maintaining smooth rotation at varying shaft angles.
- Description
- Ask a Question
-

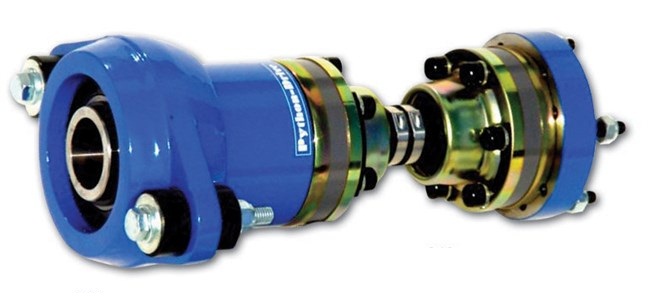

Python Drive P110-S Complete Shaft Drive System – for 3:1 Gearbox, Shaft Diameter 35–45 mm, Max Torque 1080 Nm, Max Thrust 12 kN
The Python Drive P110-S Complete Shaft Drive System is designed for marine propulsion installations on yachts and workboats requiring reliable performance and higher torque capacity. The system is compatible with a 3:1 gearbox and suitable for engines up to 135 HP at 2800 RPM.
The drive unit supports shaft diameters from 35 to 45 mm and incorporates a maintenance-free CV joint drive shaft combined with a thrust bearing system. This configuration allows propeller thrust to be transferred smoothly to the hull while maintaining constant shaft rotation even at unequal angles.
Key Features
- Product Number: P110-S
- Brand: Python
- Sales Unit: 1 piece
- Compatible with: 3:1 gearbox
- Suitable engine power: 135 HP at 2800 RPM
- Shaft diameter range: 35–45 mm
- Variable shaft diameter: Yes
- Maintenance-free CV joint drive shaft
- Thrust bearing system designed to transfer propeller thrust to the hull
Technical Specifications

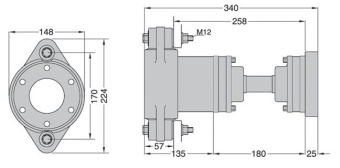

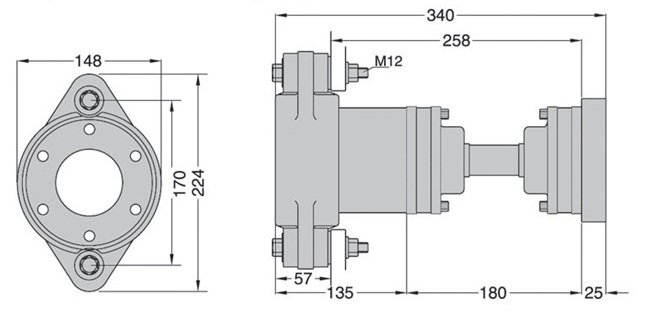

Model P110-S EAN Code 8720193045757 Shaft Diameter Range 35–45 mm Compatible Gearbox 3:1 gearbox Suitable Engine Output / Speed 135 HP / 2800 RPM Maximum Torque 1080 Nm Maximum Thrust 12 kN CV Joint Diameter 108 mm Pitch Circle Diameter 94 mm Variable Shaft Diameter Yes Sales Unit 1 piece
System Design
- Maintenance-free CV joint drive shaft
- Large thrust bearing centered by a clamping ring
- Designed to maintain constant shaft rotation even at unequal angles
- Short installation length for flexible installation
- Installation materials included such as adapter flanges, thrust bearing unit, bolts, nuts, lock washers, and rubber elements
Typical Applications
- Yachts
- Sloops
- Workboats
- Marine propulsion systems with shaft diameters between 35 and 45 mm
-
