ID
1351214
$ 1,274.80
1-2 weeks delivery time
-
+

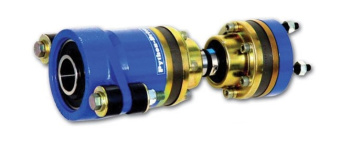

The Python Drive P60-K Complete Shaft Drive System is a marine shaft drive solution designed for use with a 3:1 reverse gearbox, suitable for engines up to 70 HP at 2600 RPM. It supports input shaft diameters from 30 to 40 mm and features a constant velocity (CV) joint diameter of 100 mm, maximum torque of 588 Nm, maximum thrust of 5.7 kN, and pitch circle diameter of 86 mm. The system includes a maintenance-free CV joint drive shaft and thrust bearing assembly, designed to transfer propeller thrust to the hull while reducing the need for periodic alignment adjustments.
- Description
- Ask a Question
-
Python Drive P60-K Complete Shaft Drive System – for 3:1 Reverse Gearbox, Shaft Diameter 30–40 mm, Max Torque 588 Nm, Max Thrust 5.7 kN
The Python Drive P60-K Complete Shaft Drive System is designed for marine propulsion installations using a 3:1 reverse gearbox. The system is suitable for engines up to 70 HP at 2600 RPM and supports shaft diameters from 30 to 40 mm.
The system incorporates a maintenance-free CV joint drive shaft and a thrust bearing arrangement designed to transfer propeller thrust to the hull. This configuration helps reduce the need for periodic alignment adjustments between the engine and propeller shaft.
Key Features
- Product Number: P60-K
- Brand: Python
- Sales Unit: 1 piece
- Compatible with: 3:1 reverse gearbox
- Suitable engine power: up to 70 HP at 2600 RPM
- Input shaft diameter range: 30–40 mm
- Variable shaft diameter: Yes
- Maintenance-free CV joint drive shaft
- Thrust bearing system for controlled transfer of propeller thrust to the hull
Technical Specifications
Model P60-K EAN Code 8720193046082 Input Shaft Diameter Range 30–40 mm Compatible Gearbox 3:1 reverse gearbox Suitable Engine Output / Speed 70 HP / 2600 RPM Maximum Torque 588 Nm Maximum Thrust 5.7 kN Constant Velocity Joint Diameter 100 mm Pitch Circle Diameter 86 mm Variable Shaft Diameter Yes Sales Unit 1 piece

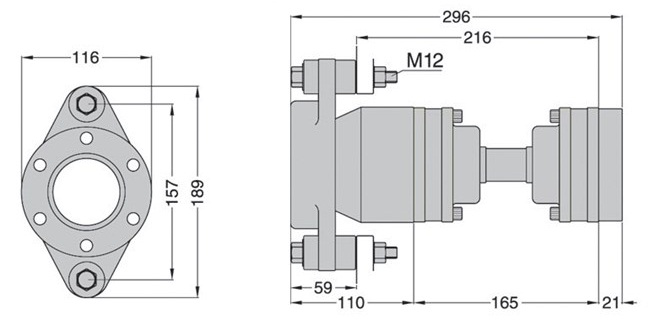

System Design
- Maintenance-free CV joint drive shaft
- Thrust bearing suspension system
- Adapter flange and installation hardware included according to the provided system description
- Designed to reduce engine and propeller shaft alignment adjustments
Typical Applications
- Small vessels
- Yachts
- Other marine propulsion installations requiring shaft diameters of 30–40 mm
-
