ID
1351219
$ 3,239.38
1-2 weeks delivery time
-
+
The Python Drive P140-T Complete Shaft Drive System is a marine propulsion drive unit designed for installations with a 3:1 gearbox, suitable for engines up to 160 HP at 2500 RPM. It supports shaft diameters from 40 to 55 mm and delivers maximum torque of 1370 Nm and maximum thrust of 18 kN. The system features a homokinetic (CV) joint diameter of 122 mm, pitch circle diameter of 103.8 mm, and a maintenance-free CV joint drive shaft with thrust bearing assembly designed to transfer propeller thrust to the hull while maintaining smooth rotation even at varying shaft angles.
- Description
- Ask a Question
-

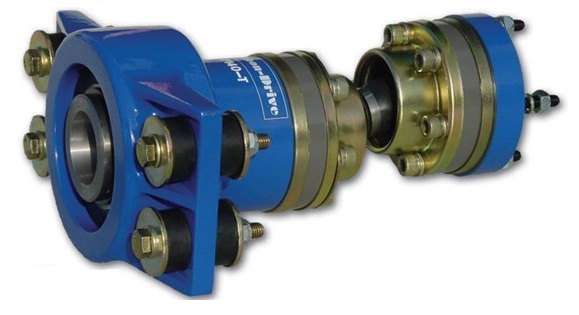

Python Drive P140-T Complete Shaft Drive System – for 3:1 Gearbox, Shaft Diameter 40–55 mm, Max Torque 1370 Nm, Max Thrust 18 kN
The Python Drive P140-T Complete Shaft Drive System is designed for marine propulsion installations on yachts and workboats that require reliable transmission of higher torque and thrust loads. The system is compatible with a 3:1 gearbox and suitable for engines up to 160 HP at 2500 RPM.
The drive unit supports shaft diameters from 40 to 55 mm and incorporates a maintenance-free CV joint drive shaft combined with a thrust bearing assembly. This configuration allows propeller thrust to be transferred to the hull through a rubber-suspended thrust bearing, while maintaining smooth and consistent rotation of the propeller shaft even at unequal shaft angles.
Key Features
- Product Number: P140-T
- Brand: Python
- Sales Unit: 1 piece
- Compatible with: 3:1 gearbox
- Suitable engine power: up to 160 HP at 2500 RPM
- Shaft diameter range: 40–55 mm
- Variable shaft diameter: Yes
- Maintenance-free CV joint drive shaft
- Large thrust bearing assembly designed to transfer propeller thrust to the hull
Technical Specifications
Model P140-T EAN Code 8720193045801 Shaft Diameter Range 40–55 mm Compatible Gearbox 3:1 gearbox Suitable Engine Output / Speed 160 HP / 2500 RPM Maximum Torque 1370 Nm Maximum Thrust 18 kN Homokinetic / CV Joint Diameter 122 mm Pitch Circle Diameter 103.8 mm Variable Shaft Diameter Yes Sales Unit 1 piece

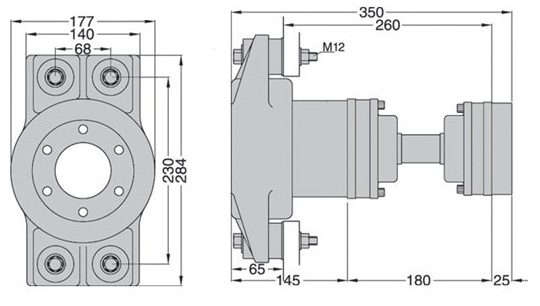

System Design
- Maintenance-free CV joint drive shaft
- Large thrust bearing centered by a clamping ring
- Rubber suspension for controlled thrust transfer to the hull
- Short installation length for flexible installation
- Installation components included such as adapter flange, drive shaft, thrust bearing unit, bolts, nuts, lock washers, and rubber elements
Typical Applications
- Yachts
- Sloops
- Workboats
- Marine propulsion systems with shaft diameters between 40 and 55 mm
-
