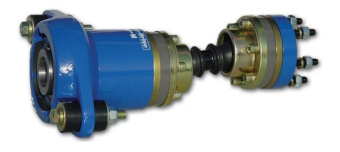

Python Drive P80-M CV Joint

1-2 weeks delivery time
Price incl. 19% VAT

Length, mm:

The Python Drive P80-M CV Joint is designed for high-performance marine propulsion systems, capable of handling shafts with diameters from 30 to 45 mm. With a maximum torque capacity of 80 Kgm (785 Nm) and a maximum stop force of 8 kN, this CV joint is ideal for 105 hp (3000 RPM) engines paired with a 3:1 gearbox. The coupling diameter is 100 mm, and it comes in three different lengths: 145 mm, 165 mm, or 195 mm, allowing for a flexible installation. This CV joint ensures smooth and efficient torque transmission, providing reliable performance in demanding marine conditions.

Description
Ask a Question

Python Drive P80-M CV Joint

The Python Drive P80-M CV Joint is designed to meet the high demands of marine propulsion systems, offering reliable performance for shafts with diameters ranging from 30 to 45 mm. This joint is engineered for maximum torque capacity of 80 Kgm (785 Nm) and a maximum stop force of 8 kN, making it suitable for 105 hp (3000 RPM) engines with a 3:1 gearbox ratio. The coupling diameter is 100 mm, with available lengths of 145 mm, 165 mm, or 195 mm, providing flexibility to suit various installation requirements. This CV joint ensures smooth and efficient torque transmission, reducing vibrations and improving the overall performance and longevity of the propulsion system.

Features:

Compatible with shafts with diameters from 30 to 45 mm
Maximum torque capacity: 80 Kgm (785 Nm)
Maximum stop force: 8 kN
Suitable for 105 hp (3000 RPM) engines with a 3:1 gearbox ratio
Coupling diameter: 100 mm
Available in lengths of 145 mm, 165 mm, or 195 mm
Designed for smooth torque transmission and reduced vibrations
Durable construction for reliable performance in marine environments

Part Numbers:

Exalto Catalog Parts: P80-M.R.145, P80-M.R.165, P80-M.R.195

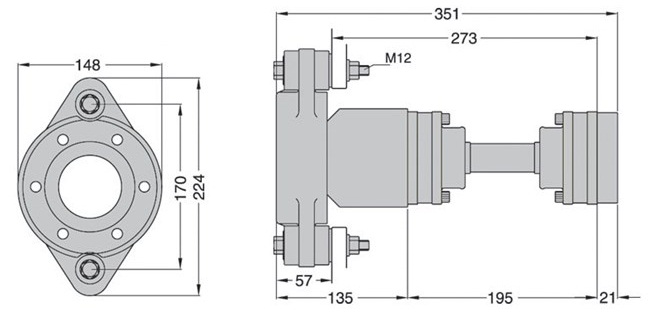

Dimensions and Technical Data:

Part Number	Length	Coupling Diameter	Max Torque	Max Stop Force	Engine Power
P80-M.R.145	145 mm	100 mm	80 Kgm (785 Nm)	8 kN	105 hp (3000 RPM)
P80-M.R.165	165 mm	100 mm	80 Kgm (785 Nm)	8 kN	105 hp (3000 RPM)
P80-M.R.195	195 mm	100 mm	80 Kgm (785 Nm)	8 kN	105 hp (3000 RPM)

The coupling can be ordered separately. Contact our consultants for more information.

Yacht-Supply24.com team is ready to help you find the ideal propulsion system for your yacht or boat. Please contact our managers or use the feedback form for assistance.
