The Python Drive P60-B Complete Shaft Drive System is a marine shaft drive unit designed for use with a 3:1 reversing coupling, suitable for engines up to 70 HP at 2600 RPM. The system supports shaft diameters from 30 to 40 mm and provides maximum torque of 588 Nm and maximum thrust of 5.7 kN. It features a homokinetic head diameter of 100 mm and a pitch circle diameter of 86 mm. The system includes a maintenance-free CV joint drive shaft and thrust bearing arrangement designed to transfer propeller thrust to the hull through a suspended thrust bearing.
- Description
- Ask a Question
-

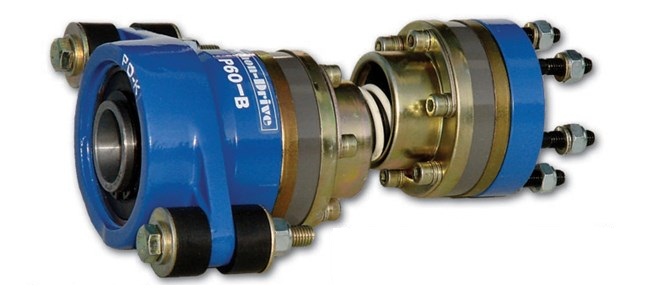

Python Drive P60-B Complete Shaft Drive System – for 3:1 Reversing Coupling, Shaft Diameter 30–40 mm, Max Torque 588 Nm, Max Thrust 5.7 kN
The Python Drive P60-B Complete Shaft Drive System is designed for marine propulsion installations using a 3:1 reversing coupling. The system is suitable for engines up to 70 HP at 2600 RPM and supports shaft diameters from 30 to 40 mm.
The system incorporates a maintenance-free CV joint drive shaft and a thrust bearing unit that transfers propeller thrust to the hull through a suspended thrust bearing arrangement. According to the provided information, the complete set includes the necessary installation components and is designed to reduce the need for periodic engine and shaft alignment adjustments.
Key Features
- Product Number: P60-B
- Brand: Python
- Sales Unit: 1 piece
- Compatible with: 3:1 reversing coupling
- Suitable engine power: up to 70 HP at 2600 RPM
- Shaft diameter range: 30–40 mm
- Maintenance-free CV joint drive shaft
- Thrust bearing system for controlled transfer of propeller thrust to the hull
Technical Specifications
Model P60-B EAN Code 8720193046075 Shaft Diameter Range 30–40 mm Compatible Reversing Coupling 3:1 Suitable Engine Output / Speed 70 HP / 2600 RPM Maximum Torque 588 Nm Maximum Thrust 5.7 kN Homokinetic Head Diameter 100 mm Pitch Circle Diameter 86 mm Sales Unit 1 piece
System Design
- Maintenance-free CV joint drive shaft
- Thrust bearing suspension system
- Designed to reduce alignment requirements between engine and propeller shaft
- Installation components included according to the provided system description
Typical Application
- Small yachts
- Sloops
- Workboats
-
