ID
1351224
$ 9,255.35
1-2 weeks delivery time
-
+

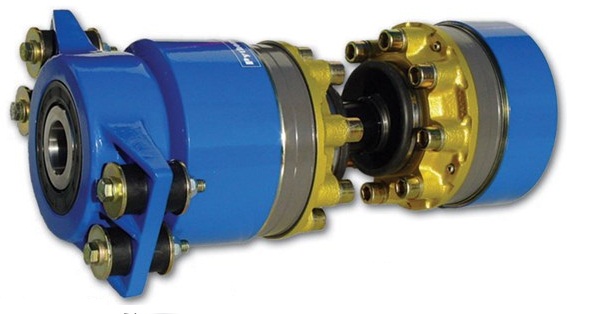

The Python Drive P501-W Complete Shaft Drive System is a marine propulsion drive unit designed for installations with a 2.5:1 reversing gearbox, suitable for engines up to 620 HP at 2400 RPM. It supports shaft diameters from 60 to 80 mm and delivers maximum torque of 4900 Nm and maximum thrust of 30 kN. The system features a constant velocity (CV) joint diameter of 191.8 mm, pitch circle diameter of 165 mm, and a maintenance-free CV joint drive shaft with thrust bearing assembly designed to transfer propeller thrust to the hull while maintaining stable shaft rotation even at unequal angles.
- Description
- Ask a Question
-
Python Drive P501-W Complete Shaft Drive System – for 2.5:1 Reversing Gearbox, Shaft Diameter 60–80 mm, Max Torque 4900 Nm, Max Thrust 30 kN
The Python Drive P501-W Complete Shaft Drive System is designed for marine propulsion installations that require high torque transmission and reliable thrust handling. The system is compatible with a 2.5:1 reversing gearbox and suitable for engines up to 620 HP at 2400 RPM.
The unit supports shaft diameters from 60 to 80 mm and incorporates a maintenance-free CV joint drive shaft together with a robust thrust bearing assembly. This configuration transfers propeller thrust smoothly to the hull while allowing the propeller shaft to rotate consistently even when operating at unequal shaft angles.
Key Features
- Product Number: P501-W
- Brand: Python
- Sales Unit: 1 piece
- Compatible with: 2.5:1 reversing gearbox
- Suitable engine power: up to 620 HP at 2400 RPM
- Shaft diameter range: 60–80 mm
- Variable shaft diameter: Yes
- Maintenance-free CV joint drive shaft
- Robust thrust bearing assembly designed to transfer propeller thrust to the hull
Technical Specifications
Model P501-W EAN Code 8720193046020 Shaft Diameter Range 60–80 mm Compatible Gearbox 2.5:1 reversing gearbox Suitable Engine Output / Speed 620 HP / 2400 RPM Maximum Torque 4900 Nm Maximum Thrust 30 kN Constant Velocity Joint Diameter 191.8 mm Pitch Circle Diameter 165 mm Variable Shaft Diameter Yes Sales Unit 1 piece
System Design
- Maintenance-free CV joint drive shaft
- Large thrust bearing assembly for controlled thrust transfer
- Designed to maintain uniform propeller shaft rotation at unequal angles
- Compact installation design for easier integration
- Complete installation set including adapter flange, drive shaft, thrust bearing unit, bolts, nuts, lock washers, and rubber elements
Typical Applications
- Yachts
- Workboats
- Marine propulsion systems with shaft diameters between 60 and 80 mm
-
