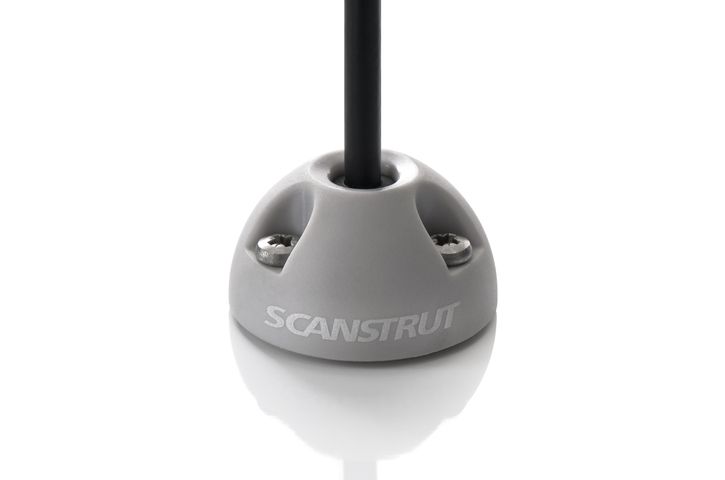

The Scanstrut Vertical Cable Seal range provides a professional IP68-rated waterproof solution for routing cables through decks, roofs, bulkheads, and panels. Available for cable diameters from 2 mm to 15 mm and connectors up to Ø40 mm, these cable seals feature UV-stable construction, split-bung technology for easy installation without removing connectors, captive nuts for repeat assembly, and a durable dome-shaped design for enhanced impact resistance. Available in grey plastic, black plastic, and marine-grade stainless steel finishes.
- Description
- Ask a Question
-
Scanstrut Vertical Cable Seal IP68 Waterproof Deck Cable Entry for 2-15 mm Cables & Connectors up to Ø40 mm
The Scanstrut Vertical Cable Seal range is designed to provide secure, waterproof cable routing for marine, RV, solar, industrial, and outdoor electrical installations. These premium cable entry seals create an IP68-rated watertight barrier while allowing cables and pre-terminated connectors to pass safely through decks, roofs, bulkheads, and equipment housings.
The innovative split-bung system eliminates the need to remove cable connectors during installation, significantly reducing installation time and simplifying maintenance. The reinforced dome-shaped profile improves impact resistance and water deflection while maintaining a clean, professional appearance.
Key Features
- IP68 waterproof protection.
- Suitable for cable diameters from 2 mm to 15 mm.
- Accommodates connectors up to Ø40 mm.
- Split-bung design allows installation without removing connectors.
- UV-stable marine-grade materials.
- Impact-resistant dome-shaped profile.
- Captive nuts for reliable repeat installation.
- 316 stainless steel mounting hardware included.
- Waterproof gasket supplied.
- No sealant required on cable bungs.
Available Variants
Model Group Cable Diameter Maximum Connector Size Available Finishes DS6 2-6 mm Direct Cable Entry Grey Plastic, Black Plastic DS16 2-8 mm Ø16 mm Grey Plastic, Black Plastic, Stainless Steel DS21A 4-9 mm Ø21 mm Grey Plastic, Black Plastic, Stainless Steel DS21B 9-14 mm Ø21 mm Grey Plastic, Black Plastic, Stainless Steel DS30 9-14 mm Ø30 mm Grey Plastic, Black Plastic, Stainless Steel DS40 12-15 mm Ø40 mm Grey Plastic, Black Plastic, Stainless Steel
Applications
- Marine electronics and navigation equipment.
- Starlink and antenna cable installations.
- Solar panel cable routing.
- Communication and networking systems.
- RV and camper electrical systems.
- Industrial electrical installations.
- Outdoor equipment and control panels.
- Any installation requiring a waterproof cable entry point.
Benefits of the Scanstrut Vertical Cable Seal Range
- 100% watertight IP68-rated protection.
- Fast and clean cable routing.
- No marine sealant required.
- Split-bung design simplifies installation.
- UV-stable and hard-wearing materials.
- High impact resistance.
- Suitable for a wide range of cable and connector sizes.
- Available in plastic and marine-grade stainless steel versions.
-
