ID
1301576
$ 89.43
1-2 weeks delivery time
-
+
The Scanstrut DS-H-MULTI-BLK is an IP68-rated horizontal multi cable seal designed for routing up to 4 cables with a maximum diameter of Ø15 mm (0.59"). Manufactured from marine-grade glass-filled nylon (high impact plastic), it provides a watertight cable entry solution for solar panels, lighting systems, electronics, and other rooftop installations. The low-profile housing measures 114.8 x 97.6 x 35.8 mm and features a self-drill bung, captive nuts, UV-stable construction, and installation compatibility with wood, metal, and GRP surfaces.
- Description
- Ask a Question
-

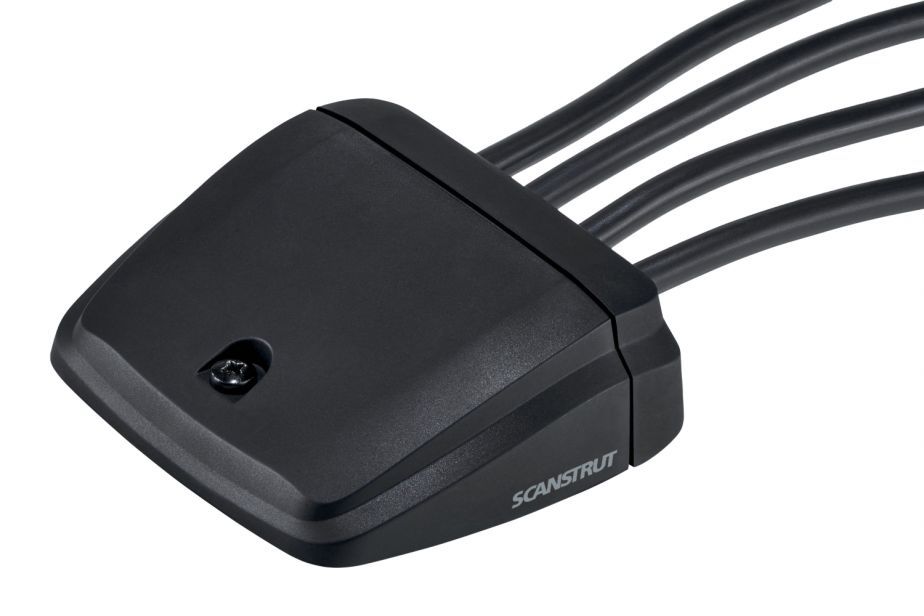

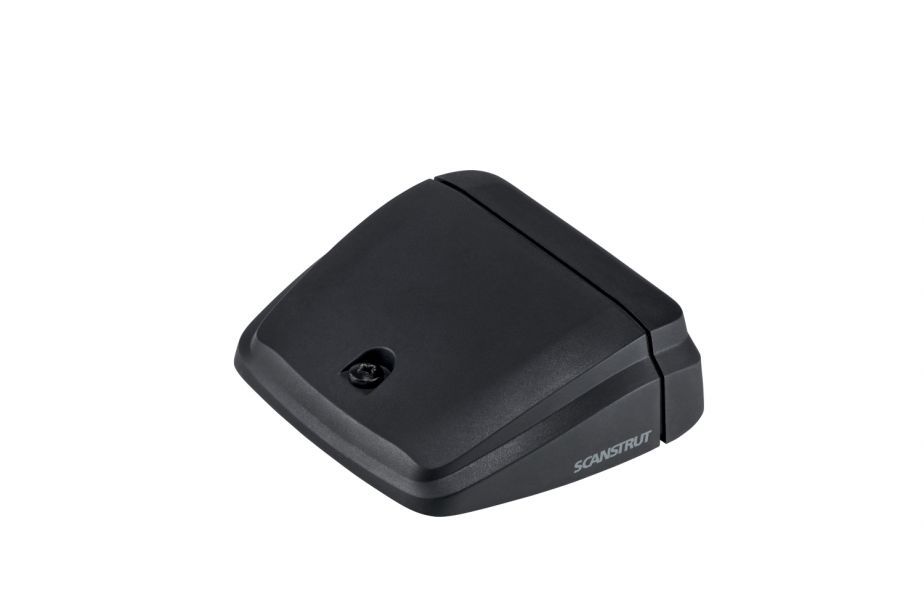

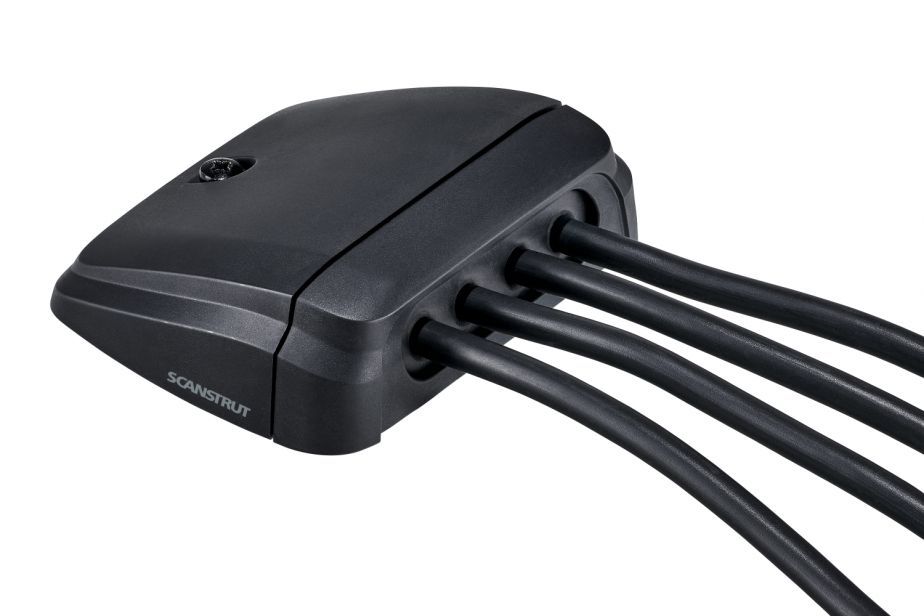

Scanstrut DS-H-MULTI-BLK – Horizontal Multi Cable Seal IP68 for up to 4 x Ø15 mm Cables, Black Plastic
The Scanstrut DS-H-MULTI-BLK Horizontal Multi Cable Seal is designed to provide a secure and watertight cable entry point for multiple cables in marine, vehicle, and outdoor installations. Developed for routing cables from solar panels, lighting systems, rooftop electronics, and other equipment, it combines IP68 waterproof protection with a robust low-profile design.
Manufactured from marine-grade glass-filled nylon, the seal offers excellent durability, UV resistance, and long-term reliability in demanding environments. The self-drill bung allows custom cable layouts while captive nuts simplify assembly and future maintenance.
Key Features
- Horizontal cable seal for multiple cable installations.
- IP68 waterproof protection.
- Suitable for up to 4 cables with a maximum cable diameter of Ø15 mm (0.59").
- Self-drill bung for customized cable configurations.
- Marine-grade glass-filled nylon construction.
- UV-stable and impact-resistant design.
- Captive nuts for reliable and repeatable installation.
- No sealant required.
- Suitable for installation on wood, metal, and GRP surfaces.
Applications
- Solar panel cable routing.
- Vehicle roof installations.
- Marine electronics.
- Lighting systems.
- Communication equipment.
- Outdoor electrical installations.
- Large electronic equipment cable entry.

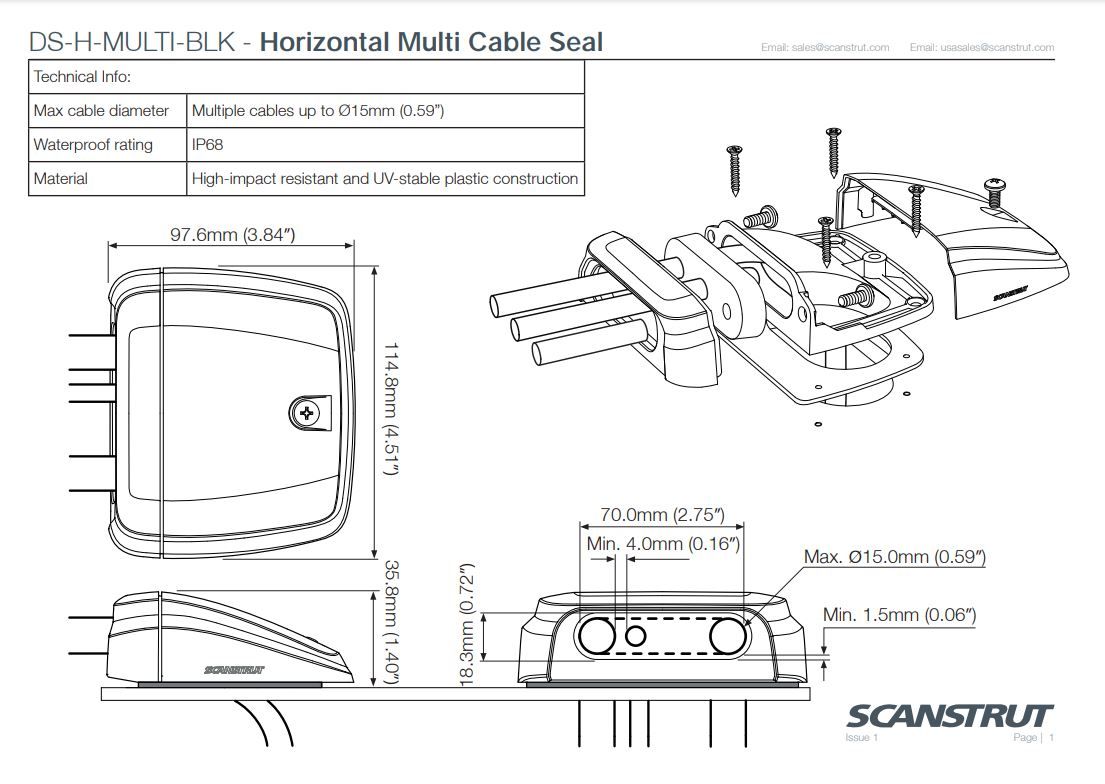

Technical Specifications
Specification Value Brand Scanstrut Model DS-H-MULTI-BLK Product Type Horizontal Multi Cable Seal Protection Rating IP68 Material Marine-Grade Glass-Filled Nylon (High Impact Plastic) Colour Black Maximum Cable Diameter Ø15 mm (0.59") Cable Capacity Up to 4 cables Length 97.6 mm (3.84") Width 114.8 mm (4.51") Height 35.8 mm (1.40") Bung Type Self-Drill Installation Surfaces Wood, Metal, GRP
Benefits
- Creates a clean and professional cable entry point.
- Protects installations against water ingress.
- Supports multiple cable layouts through a single opening.
- Ideal for rooftop electronics and solar systems.
- Allows customized cable routing using the supplied self-drill bung.
- Designed for long-term outdoor use.

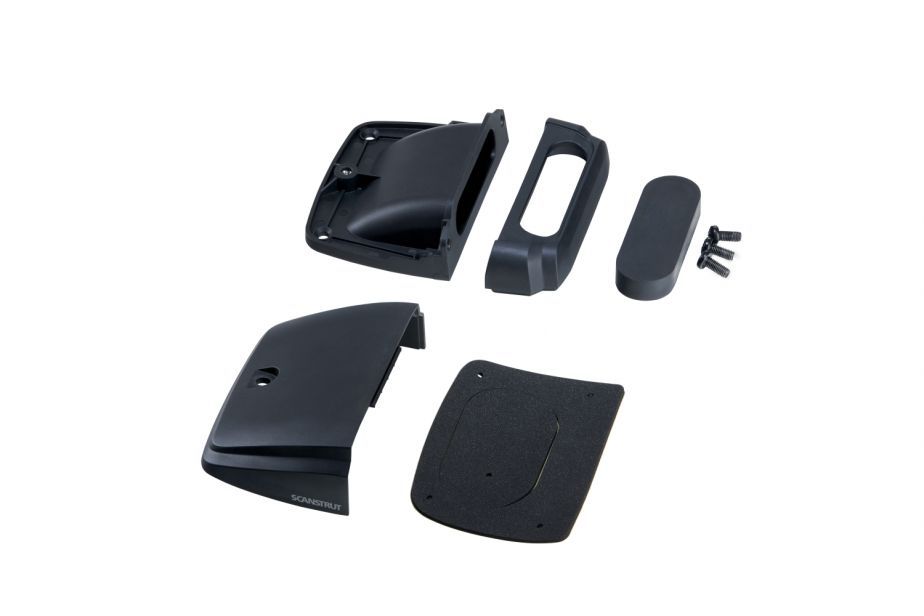

Package Contents
- Scanstrut DS-H-MULTI-BLK Horizontal Multi Cable Seal.
- Self-drill cable bung.
- Captive nut installation system.
-
