ID
1375329
$ 89.11
1-2 weeks delivery time
Type:
- 2-8 mm Cables
- 4-9 mm Cables
- 9-14 mm Cables
Diameter, mm:
- 16
- 21
- 30
Item:
- Stainless Steel
- Black Aluminium
The Scanstrut Low Profile Cable Seal range provides an IP68-rated waterproof cable entry solution with an installation height reduced by up to 70% compared to standard cable seals. Available in Black Anodised Aluminium and Marine Grade 316 Stainless Steel, these models accommodate cables from 2 mm to 14 mm and connectors up to Ø30 mm. Designed for marine electronics, solar panels, light bars, antennas, and rooftop equipment, the low-profile construction delivers a cleaner appearance while maintaining 100% watertight performance, UV resistance, corrosion protection, captive nuts for repeat installation, and split bungs for installation without removing cable connectors.
- Description
- Ask a Question
-

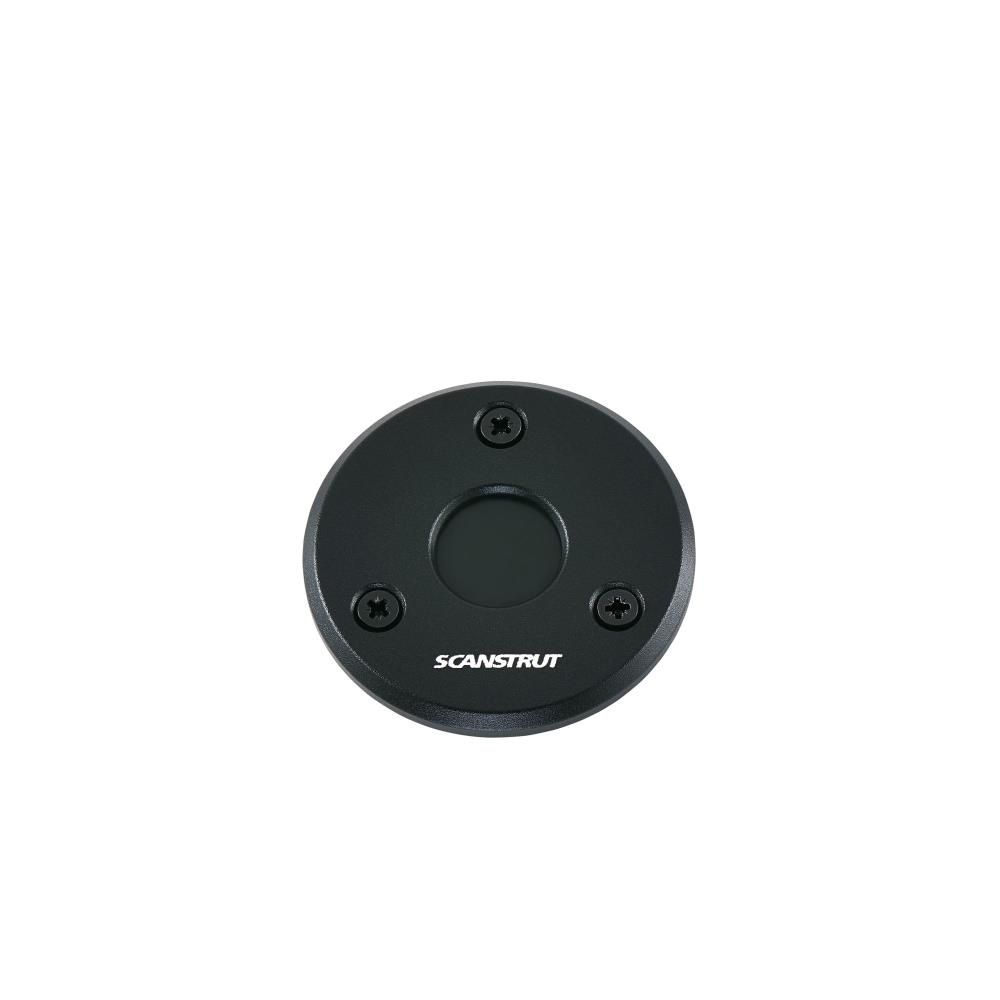

Scanstrut Low Profile Cable Seal IP68 for Cables 2-14 mm – Black Anodised Aluminium & 316 Stainless Steel Variants
The Scanstrut Low Profile Cable Seal range is designed for applications where appearance, space-saving installation, and reliable waterproof protection are equally important. By concealing the sealing technology below the mounting surface, these cable seals reduce overall seal height by approximately 68-73% compared to standard cable seals while maintaining a fully IP68-rated waterproof installation.
Manufactured from either Black Anodised Marine Grade Aluminium or Marine Grade 316 Stainless Steel, the range provides excellent resistance to corrosion and UV exposure while creating a clean, professional finish for marine, solar, RV, and outdoor electrical installations.
Key Features
- IP68 waterproof protection.
- Low-profile design with up to 73% height reduction.
- Suitable for marine, solar, RV, and outdoor installations.
- Black anodised aluminium or 316 stainless steel construction.
- 100% watertight installation.
- Captive nuts for easy repeat installation.
- Split bungs allow installation without removing cable connectors.
- UV-resistant materials.
- No sealant required on cable bungs.
- Designed for antennas, navigation lights, solar panels, light bars, and rooftop electronics.
Available Variants
Model Material Cable Range Max Connector Seal Diameter DS-LP-16-BLK Black Anodised Aluminium 2-8 mm Ø16 mm 49.9 mm DS-LP-16-S 316 Stainless Steel 2-8 mm Ø16 mm 49.9 mm DS-LP-21A-BLK Black Anodised Aluminium 4-9 mm Ø21 mm 60.7 mm DS-LP-21A-S 316 Stainless Steel 4-9 mm Ø21 mm 60.7 mm DS-LP-21B-BLK Black Anodised Aluminium 9-14 mm Ø21 mm 60.7 mm DS-LP-21B-S 316 Stainless Steel 9-14 mm Ø21 mm 60.7 mm DS-LP-30-BLK Black Anodised Aluminium 9-14 mm Ø30 mm 75.6 mm DS-LP-30-S 316 Stainless Steel 9-14 mm Ø30 mm 75.6 mm
Applications
- Antenna cable installations.
- Navigation light wiring.
- Solar panel cable routing.
- Light bars and rooftop electronics.
- Marine electronics.
- RV and camper electrical systems.
- Exterior cable entry points.
Technical Specifications
Model Group Cable Diameter Max Connector Size Bungs Included LP-16 2-8 mm Ø16 mm 2 mm, 4 mm, 7 mm, Self Drill LP-21A 4-9 mm Ø21 mm 4 mm, 5 mm, 7 mm, Self Drill LP-21B 9-14 mm Ø21 mm 9 mm, 11 mm, 13 mm, Self Drill LP-30 9-14 mm Ø30 mm 9 mm, 11 mm, 13 mm, Self Drill
Construction Features
- IP68-certified waterproof sealing system.
- Closed-cell base seal.
- Tapered waterproof cable bung design.
- Captive nuts for repeat assembly.
- Split-seal technology for connector retention during installation.
- Hole-saw installation method with sealing technology hidden below mounting surface.
- UV-resistant materials for long-term outdoor use.
-
