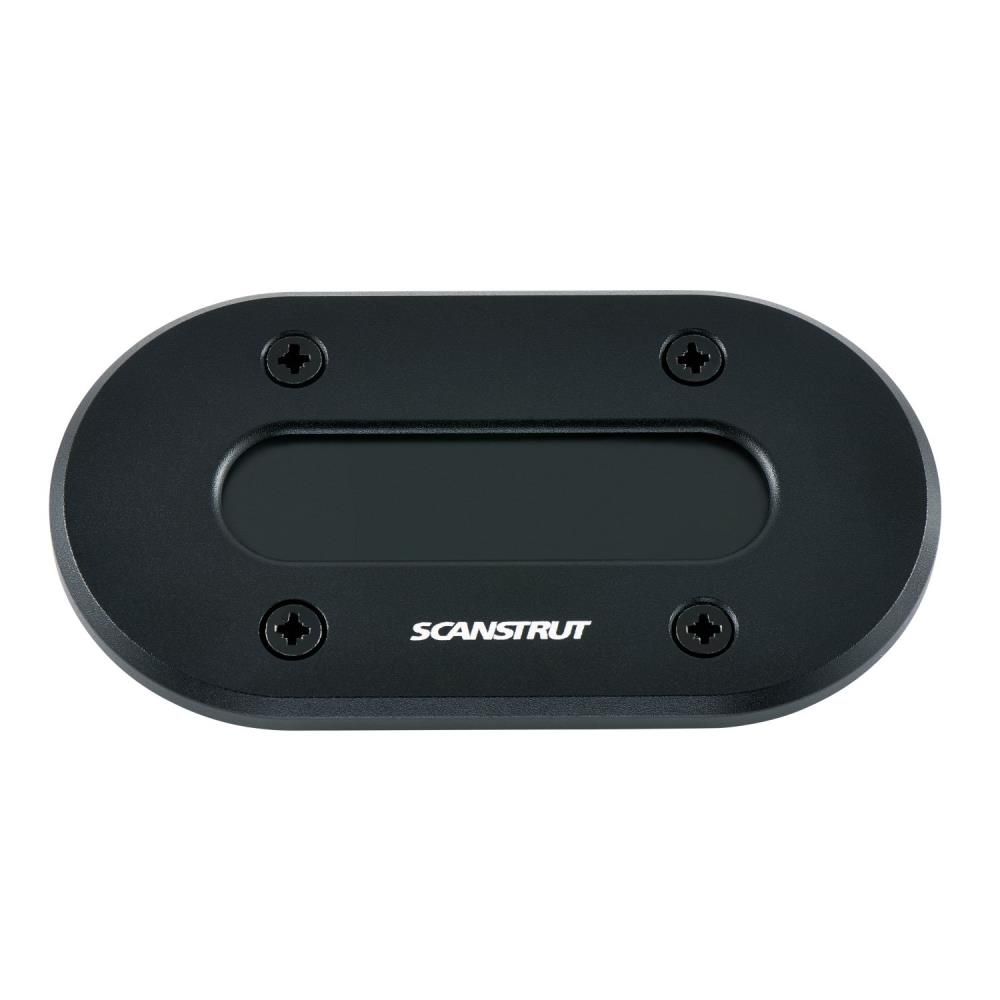

Scanstrut Low Profile Multi Cable Seal IP68 for Multiple Cables up to Ø15 mm

ID 1375338

$ 220.13

1-2 weeks delivery time

Item:

Stainless Steel
Black Aluminium

The Scanstrut Low Profile Multi Cable Seal is an IP68-rated waterproof cable entry system designed for multiple cables up to Ø15 mm. Available in Black Anodised Aluminium and Marine Grade 316 Stainless Steel, it provides a low-profile installation with up to 71% lower mounting height compared to standard multi cable seals. Suitable for solar panels, antennas, light bars, rooftop electronics, and marine electrical systems, the seal features a closed-cell base seal, captive nuts, UV-resistant materials, and a self-drill bung for custom cable layouts. Cable seal diameter is 114 mm with support for connectors up to Ø18.5 mm.

Description
Ask a Question

Scanstrut Low Profile Multi Cable Seal IP68 for Multiple Cables up to Ø15 mm – Black Anodised Aluminium & 316 Stainless Steel

The Scanstrut Low Profile Multi Cable Seal range is designed for installations requiring multiple cable entries while maintaining a clean appearance and complete waterproof protection. Suitable for cables up to Ø15 mm, these cable seals reduce mounting height by 71% compared to standard multi-cable seals by locating the sealing technology below the mounting surface.

Available in Black Anodised Aluminium and Marine Grade 316 Stainless Steel, the range combines corrosion resistance, UV stability, and impact-resistant construction with an IP68-rated waterproof sealing system. The supplied self-drill bung allows custom cable layouts for antennas, solar panels, navigation systems, rooftop electronics, and other marine or outdoor electrical installations.

Key Features

IP68 waterproof protection.
Designed for multiple cables up to Ø15 mm.
Low-profile design with 71% reduced mounting height.
Black anodised aluminium or marine-grade 316 stainless steel construction.
Closed-cell base seal for 100% watertight installation.
Captive nuts for easy assembly and repeat installation.
UV-resistant materials for outdoor environments.
Self-drill bung for custom cable configurations.
No sealant required on cable bung.
Suitable for marine, solar, RV, and rooftop electronics installations.

Available Variants

Model	Material	Colour	Maximum Cable Diameter	Maximum Connector Diameter
DS-LP-MULTI-BLK	Black Anodised Aluminium	Black	Ø15 mm	Ø18.5 mm
DS-LP-MULTI-S	Marine Grade 316 Stainless Steel	Silver	Ø15 mm	Ø18.5 mm

Applications

Solar panel cable routing.
Radar and antenna installations.
Navigation equipment wiring.
Light bars and deck lighting.
Rooftop electronics.
Marine electrical systems.
RV and camper installations.
Outdoor cable entry points.

Technical Specifications

Specification	Value
Brand	Scanstrut
Product Type	Low Profile Multi Cable Seal
Protection Rating	IP68
Maximum Cable Diameter	15 mm (0.59")
Maximum Connector Diameter	18.5 mm (0.73")
Cable Seal Diameter	114.0 mm (4.49")
Installation Type	Low Profile Flush Mount
Bungs Included	1 x Self Drill Bung

Construction Features

Low-profile installation with sealing technology below mounting surface.
Tapered waterproof bung design.
Closed-cell base sealing system.
Captive nuts for repeat servicing.
Corrosion-resistant marine-grade materials.
UV-stable outdoor construction.
Suitable for custom multi-cable layouts.
