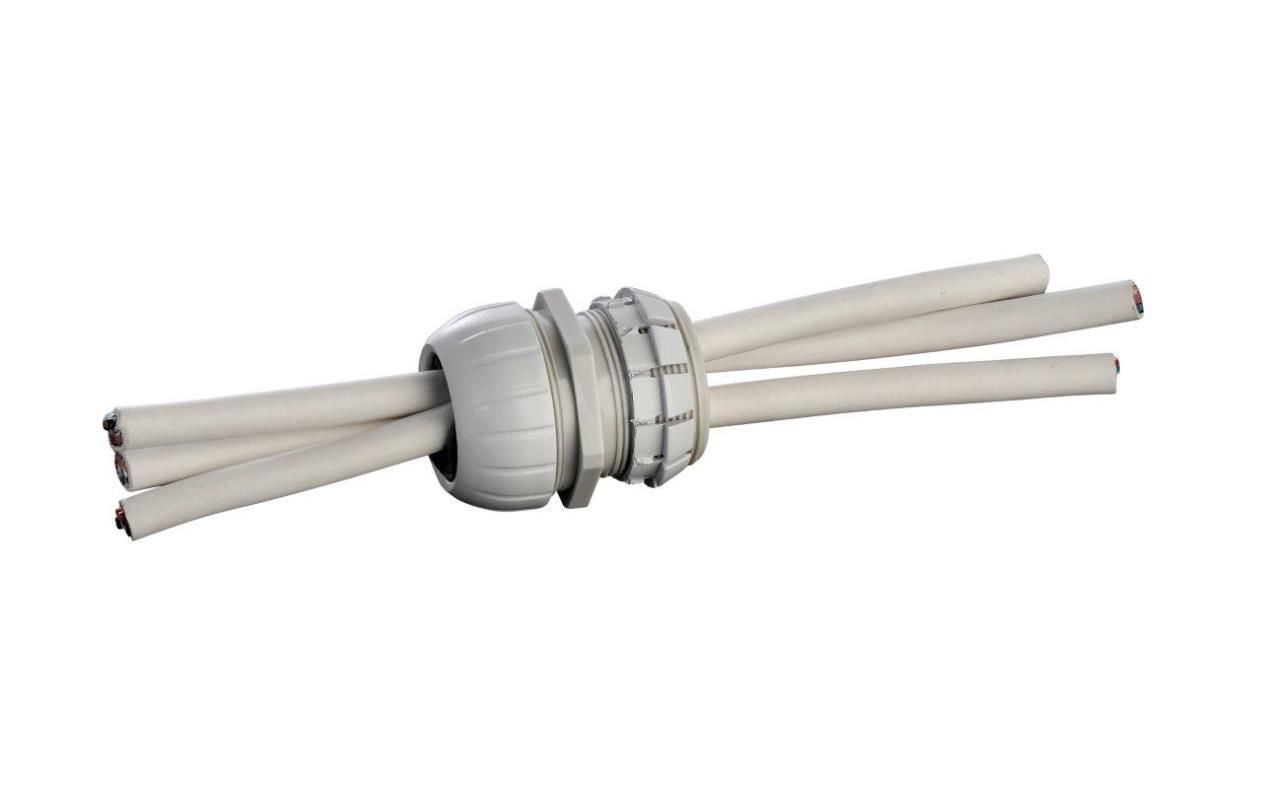

Scanstrut TBH-4 Through Bulkhead Cable Pass for 4 x 16 mm Cables

ID 1375344

$ 94.33

1-2 weeks delivery time

Type:

4 x 16 mm Cables
10 x 7 mm Cables

The Scanstrut Through-Bulkhead Cable Pass range provides a waterproof IP67 solution for routing multiple electrical cables through bulkheads, panels, and partitions. Manufactured from high-strength nylon with an over-moulded internal sealing system, these cable passes are designed for bulkheads from 10 mm to 35 mm thick and allow installation from a single side. Available in two versions: TBH-4 for up to 4 cables sized 7-15 mm and TBH-10 for up to 10 cables up to 7 mm diameter, making them ideal for windlass wiring, navigation equipment, marine electrical systems, and outdoor cable installations.

Description
Ask a Question

Scanstrut Through-Bulkhead Cable Pass IP67 – TBH-4 for 4 Cables or TBH-10 for 10 Cables

The Scanstrut Through-Bulkhead Cable Pass range is designed to provide a secure and waterproof method for routing multiple electrical cables through bulkheads, partitions, and panels. Built for marine and outdoor applications, these cable passes maintain IP67-rated protection while reducing installation time and simplifying cable management.

Manufactured from high-strength nylon with an over-moulded internal sealing system, both models allow installation from one side of the bulkhead and provide reliable long-term protection against water ingress and cable wear.

Key Features

IP67 waterproof protection.
Single-side installation for faster fitting.
High-strength nylon construction.
Over-moulded internal sealing system.
Suitable for marine and outdoor environments.
Protects cables from water ingress and abrasion.
Compatible with bulkheads from 10 mm to 35 mm thick.
Compact round design.

Available Variants

Model	Cable Capacity	Cable Size	Bulkhead Thickness	Protection Rating
TBH-4	Up to 4 cables	7-15 mm	10-35 mm	IP67
TBH-10	Up to 10 cables	Up to 7 mm	10-35 mm	IP67

Applications

Windlass power and control cables.
Marine electrical systems.
Navigation and communication equipment.
Bulkhead cable routing.
Lazarette and locker cable entries.
Outdoor electrical installations.

Technical Specifications

Specification	TBH-4	TBH-10
Product Number	TBH-4	TBH-10
EAN	5060114793897	5060114793903
Protection Rating	IP67	IP67
Maximum Number of Cables	4	10
Cable Diameter Capacity	7-15 mm	Up to 7 mm
Bulkhead Thickness	10-35 mm (0.39"-1.37")	10-35 mm (0.39"-1.37")
Material	High-Strength Nylon	High-Strength Nylon
Shape	Round	Round

Installation Benefits

Allows multiple cables to pass through a single sealed opening.
Can be installed by one person from a single side of the bulkhead.
Maintains waterproof integrity after installation.
Reduces installation time compared to conventional cable routing methods.
Provides a neat and professional cable management solution.

Package Contents

Scanstrut Through-Bulkhead Cable Pass.
Integrated sealing components.
