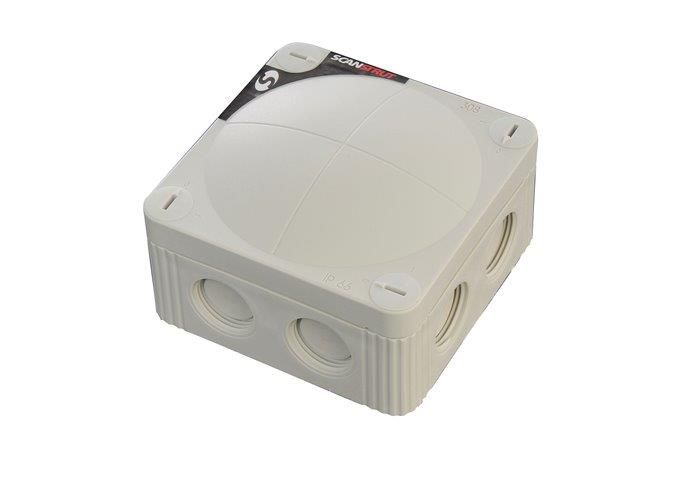

Scanstrut Marine Waterproof Junction Box IP66 – 5 or 10 Screw Terminal Contacts

ID 1375347

$ 58.94

1-2 weeks delivery time

Type:

5 Terminals
10 Terminals

The Scanstrut Marine Junction Box range provides a compact and secure electrical connection enclosure for marine, outdoor, and industrial installations. Manufactured from marine-grade polypropylene, both models feature IP66 protection, modular screw-down terminal blocks, removable terminal assemblies, and sprung leaf cable retention. Available with either 5 or 10 terminal contacts, both junction boxes measure 85 x 85 x 50 mm and can be upgraded to IP67 protection when used with optional Scanstrut SB-2G cable gland kits.

Description
Ask a Question

Scanstrut Marine Waterproof Junction Box IP66 – 5 or 10 Screw Terminal Contacts

The Scanstrut Marine Junction Box range provides a reliable and organized solution for electrical cable termination and connection management in marine, outdoor, and industrial environments. Manufactured from marine-grade polypropylene, these enclosures protect electrical connections while maintaining easy access for inspection, servicing, and maintenance.

Each junction box features a modular terminal system with secure screw-down contacts, removable terminal assemblies, and a sprung leaf retention system that helps secure cables without damaging conductors. The enclosures are rated IP66 as standard and can be upgraded to IP67 protection when fitted with optional Scanstrut SB-2G cable gland kits.

Key Features

Marine-grade waterproof junction box.
IP66 protection rating.
Upgradeable to IP67 with optional Scanstrut SB-2G cable gland kits.
Heavy-duty polypropylene construction.
Modular screw-down terminal design.
Removable terminal assemblies for easier wiring installation.
Sprung leaf retention system for secure cable management.
Suitable for marine, outdoor, and industrial applications.
Supplied with mounting bracket and fixing screws.

Available Variants

Model	Terminal Contacts	EAN
SB-8-5	5 Screw-Down Terminals	5060114793439
SB-8-10	10 Screw-Down Terminals	5060114793446

Applications

Marine electrical systems.
Navigation and communication equipment.
Solar power installations.
Outdoor electrical connections.
Industrial control systems.
Power distribution points.
Cable termination and connection management.

Technical Specifications

Specification	SB-8-5	SB-8-10
Product Number	SB-8-5	SB-8-10
Protection Rating	IP66	IP66
Terminal Contacts	5	10
Terminal Type	Screw-Down Modular Terminals	Screw-Down Modular Terminals
Material	Marine-Grade Polypropylene	Marine-Grade Polypropylene
Length	85 mm	85 mm
Width	85 mm	85 mm
Height	50 mm	50 mm
IP67 Upgrade	Optional SB-2G Cable Gland Kit	Optional SB-2G Cable Gland Kit

Installation Features

Terminal blocks can be fitted individually or connected together.
Removable terminals simplify wiring and maintenance.
Sprung leaf retention system securely holds cables in position.
Designed for reliable long-term operation in harsh environments.
Compatible with Scanstrut SB-2G cable gland kits for IP67 installations.

Package Contents

Scanstrut Junction Box.
5 or 10 screw terminal contacts depending on selected version.
Mounting bracket.
Self-tapping mounting screws.
