ID
1375341
$ 70.04
1-2 weeks delivery time
Item:
- Black Plastic
- Anodised Aluminium

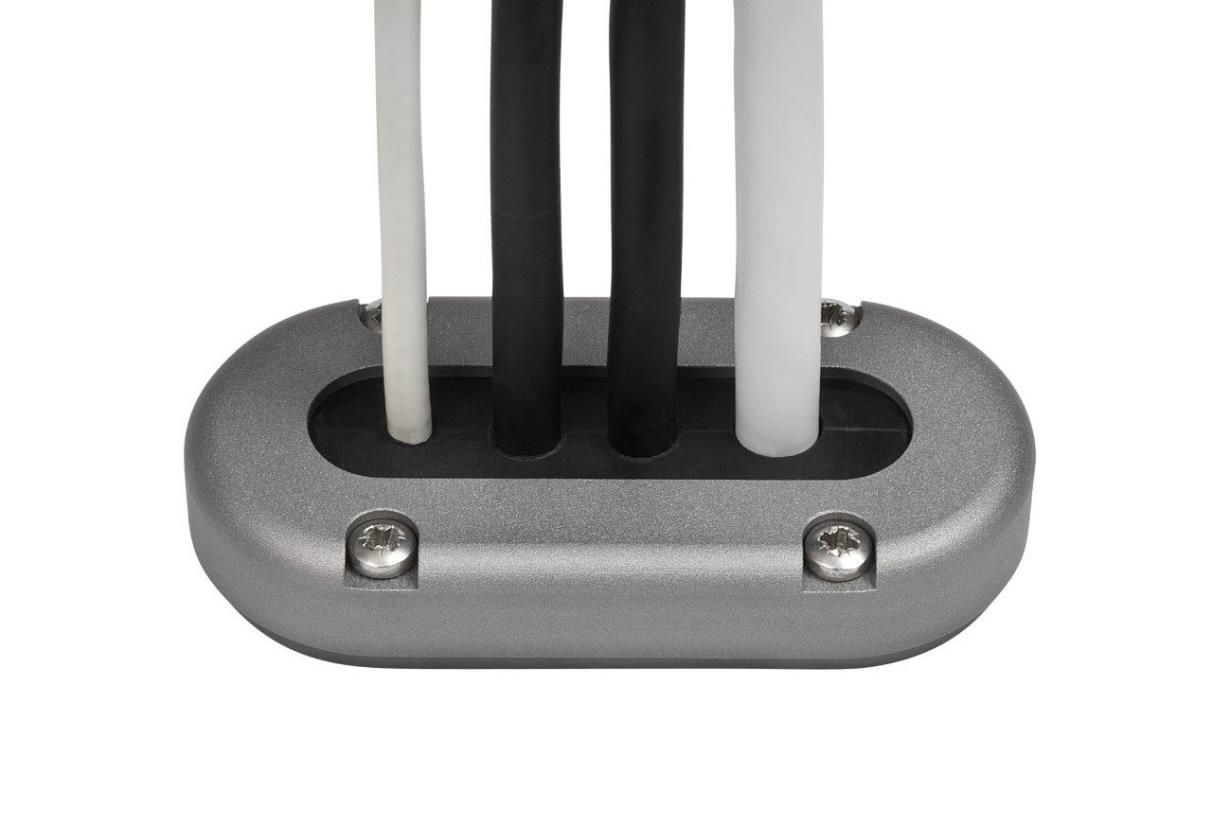

The Scanstrut Multi Cable Seal is an IP68-rated waterproof cable entry system designed for routing multiple cables through decks, roofs, and bulkheads. Available in marine-grade anodised aluminium and UV-stable high-impact black plastic, it supports up to 4 cables with a maximum cable diameter of Ø15 mm (0.59"). The low-profile housing measures 105 mm in length and 23 mm in height and includes a self-drill bung for fully customizable cable layouts. Ideal for solar panels, antennas, navigation systems, lighting, and other marine or outdoor electronics installations.
- Description
- Ask a Question
-
Scanstrut Multi Cable Seal IP68 for up to 4 x Ø15 mm Cables – Anodised Aluminium & Black Plastic
The Scanstrut Multi Cable Seal range provides a professional solution for routing multiple cables through decks, roofs, bulkheads, and equipment panels while maintaining a completely watertight installation. Designed for applications requiring several cable runs through a single entry point, these cable seals are suitable for marine electronics, solar panels, antennas, lighting systems, and other outdoor electrical equipment.
Available in marine-grade anodised aluminium and UV-resistant high-impact plastic, the range offers durable corrosion-resistant construction and IP68 waterproof protection. The supplied self-drill bung allows installers to create custom cable layouts for a wide variety of installation requirements.
Key Features
- IP68 waterproof protection.
- Designed for multiple cable installations.
- Supports up to 4 cables with a maximum cable diameter of Ø15 mm (0.59").
- Self-drill bung for customized cable routing.
- No sealant required on the cable bung.
- UV-resistant construction for outdoor use.
- Suitable for marine, RV, commercial, and outdoor installations.
- Provides a clean and professional cable entry solution.
Available Variants
Model Material Colour Maximum Cable Diameter DS-MULTI Anodised Aluminium Silver 4 x Ø15 mm (0.59") DS-MULTI-P-BLK High Impact Plastic Black 4 x Ø15 mm (0.59")
Applications
- Solar panel installations.
- Radar and antenna cabling.
- Navigation and communication equipment.
- Marine lighting systems.
- Rooftop electronics.
- RV and camper electrical systems.
- Commercial vehicle installations.
- Outdoor electrical cable routing.
Technical Specifications
Specification Value Brand Scanstrut Product Type Multi Cable Seal Protection Rating IP68 Maximum Number of Cables 4 Maximum Cable Diameter 15 mm (0.59") Length 105 mm (4.13") Height 23 mm (0.91") Bung Type Self Drill
Material Options
- DS-MULTI: Marine-grade anodised aluminium construction with excellent corrosion resistance and long-term durability.
- DS-MULTI-P-BLK: UV-stable high-impact plastic construction designed for lightweight and durable outdoor performance.
Package Contents
- Scanstrut Multi Cable Seal.
- Self-drill cable bung.
- Installation hardware.
-
