ID
1351294
$ 91.99
1-2 weeks delivery time
Type:
- 0–3000 RPM
- 0–4000 RPM
- 0–6000 RPM
- 0–8000 RPM
Item:
- Black Dial & Black Bezel
- Black Dial & Glossy Bezel
- White Dial & Glossy Bezel

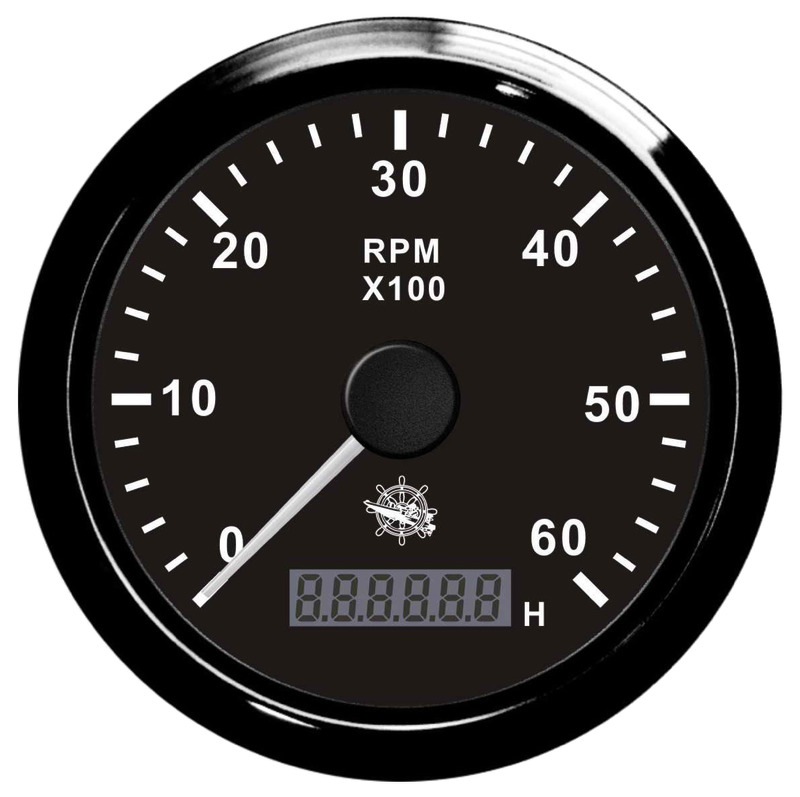

The Osculati Revolution Counter Tachometers with Engine Hour Counter are universal electronic engine speed gauges designed for marine engines operating on 12V or 24V systems. The instruments connect to the alternator “W” terminal and include an integrated engine hour counter for monitoring total engine operating time. The series is available with 0–3000, 0–4000, 0–6000, or 0–8000 RPM scales, and with black or white dial options combined with black or glossy bezel finishes. All models feature red and yellow backlit dials and standard dashboard dimensions with 96 mm outer diameter, 85 mm panel cut-out, and 55 mm installation depth.
- Description
- Ask a Question
-
Osculati Revolution Counter Tachometers with Engine Hour Counter – 0–3000 / 4000 / 6000 / 8000 RPM 12/24V, Ø96 mm
The Osculati Revolution Counter Tachometers with Engine Hour Counter are electronic marine instruments designed to monitor engine speed while recording total engine operating hours. These tachometers are suitable for marine engines operating on 12V or 24V electrical systems and receive the signal from the alternator “W” terminal.
Each instrument combines a precise revolution counter with a built-in engine hour counter, allowing continuous monitoring of engine performance and maintenance intervals. The gauges feature clear analog displays with red and yellow dial backlighting for improved readability in low-light conditions and are available in several dial and bezel combinations to match different dashboard styles.
Key Features
- Electronic revolution counter for marine engines
- Integrated engine hour counter
- Connection via alternator “W” terminal
- Suitable for 12V and 24V electrical systems
- Available RPM ranges: 0–3000, 0–4000, 0–6000, 0–8000
- Black or white dial options
- Black or glossy bezel finishes
- Red and yellow dial backlighting
- Standard marine dashboard mounting size
Available Variants
Item Dial / Bezel Scale Voltage Instrument Ø Hole Ø Depth (P) 27.325.01 Black dial, black bezel 0–3000 RPM 12 / 24 V 96 mm 85 mm 55 mm 27.325.02 Black dial, black bezel 0–4000 RPM 12 / 24 V 96 mm 85 mm 55 mm 27.325.03 Black dial, black bezel 0–6000 RPM 12 / 24 V 96 mm 85 mm 55 mm 27.325.04 Black dial, black bezel 0–8000 RPM 12 / 24 V 96 mm 85 mm 55 mm 27.326.01 Black dial, glossy bezel 0–3000 RPM 12 / 24 V 96 mm 85 mm 55 mm 27.326.02 Black dial, glossy bezel 0–4000 RPM 12 / 24 V 96 mm 85 mm 55 mm 27.326.03 Black dial, glossy bezel 0–6000 RPM 12 / 24 V 96 mm 85 mm 55 mm 27.326.04 Black dial, glossy bezel 0–8000 RPM 12 / 24 V 96 mm 85 mm 55 mm 27.327.01 White dial, glossy bezel 0–3000 RPM 12 / 24 V 96 mm 85 mm 55 mm 27.327.02 White dial, glossy bezel 0–4000 RPM 12 / 24 V 96 mm 85 mm 55 mm 27.327.03 White dial, glossy bezel 0–6000 RPM 12 / 24 V 96 mm 85 mm 55 mm 27.327.04 White dial, glossy bezel 0–8000 RPM 12 / 24 V 96 mm 85 mm 55 mm
Installation Dimensions
- Instrument diameter: 96 mm
- Panel hole diameter: 85 mm
- Installation depth (P): 55 mm
-
