Osculati Waste Water Tank Level Gauges, Ø57 mm

ID 1351311

$ 35.93

1-2 weeks delivery time

Item:

Black Dial & Black Bezel
Black Dial & Glossy Bezel
White Dial & Glossy Bezel

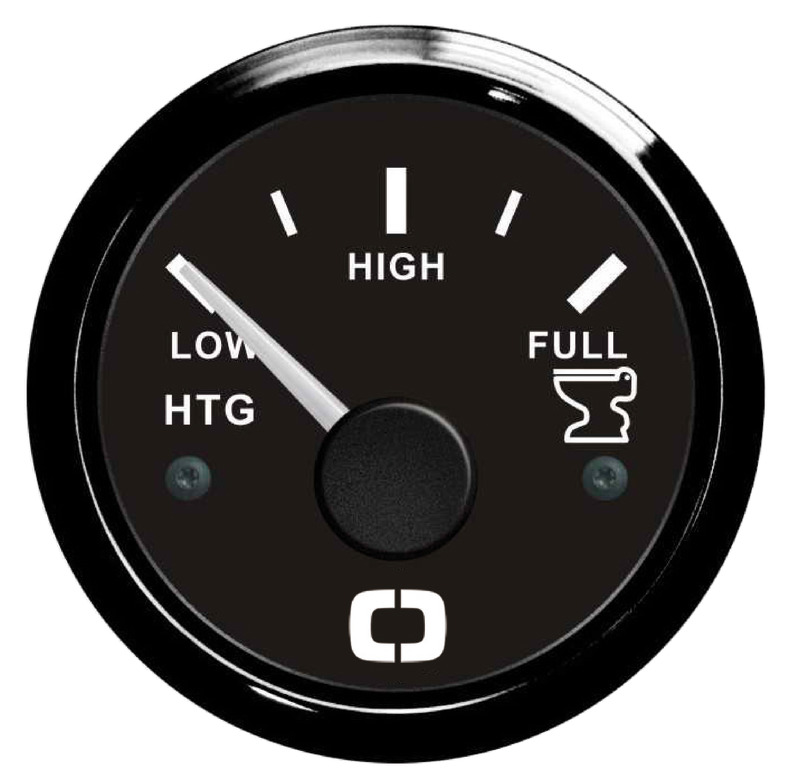

The Osculati Waste Water Level Gauges are marine dashboard instruments designed to monitor waste water tank levels using 10–180 Ohm senders. The gauges feature red and yellow backlit dials for clear readability and are available with black dial options combined with black or glossy bezel finishes. All models share standard installation dimensions with a 57 mm outer diameter, 51 mm panel cut-out, and 45 mm installation depth, allowing easy installation on marine dashboards and control panels.

Description
Ask a Question

Osculati Waste Water Level Gauges – 10–180 Ohm Marine Tank Gauge, Ø57 mm

The Osculati Waste Water Level Gauges are marine instruments designed to monitor the level of waste water tanks onboard boats and vessels. These gauges are compatible with 10–180 Ohm tank senders, a common resistance range used in marine tank monitoring systems.

The instruments feature clear analog displays with red and yellow dial backlighting for good visibility during night navigation or in low-light environments. Different bezel finishes are available to match various dashboard designs while maintaining the same compact marine gauge dimensions.

Key Features

Waste water tank level gauges for marine applications
Compatible with 10–180 Ohm tank senders
Black dial with multiple bezel finish options
Red and yellow backlit dial for improved visibility
Compact marine dashboard instrument
Standard Ø57 mm installation size

Available Variants

Item	Dial / Bezel	Sender Range	Instrument Ø	Hole Ø	Depth (P)
27.320.05	Black dial, black bezel	10–180 Ohm	57 mm	51 mm	45 mm
27.321.05	Black dial, glossy bezel	10–180 Ohm	57 mm	51 mm	45 mm
27.322.05	Black dial, glossy bezel	10–180 Ohm	57 mm	51 mm	45 mm

Installation Dimensions

Instrument diameter: 57 mm
Panel hole diameter: 51 mm
Installation depth (P): 45 mm
