ID
1354002
$ 35.93
1-2 weeks delivery time
Type:
- 0–5 Bar
- 0–10 Bar
Item:
- Black Dial & Black Bezel
- Black Dial & Glossy Bezel
- White Dial & Glossy Bezel
The Osculati Oil Pressure Indicators are marine dashboard gauges designed to monitor engine lubrication pressure with 0–5 bar or 0–10 bar measurement ranges. The instruments operate on 12V or 24V electrical systems and feature red and yellow backlit dials for clear visibility in low-light conditions. The series includes versions with black or white dial options and black or glossy bezel finishes. All gauges share standard installation dimensions with a 57 mm outer diameter, 51 mm panel hole diameter, and 45 mm installation depth, allowing easy integration into marine dashboards.
- Description
- Ask a Question
-

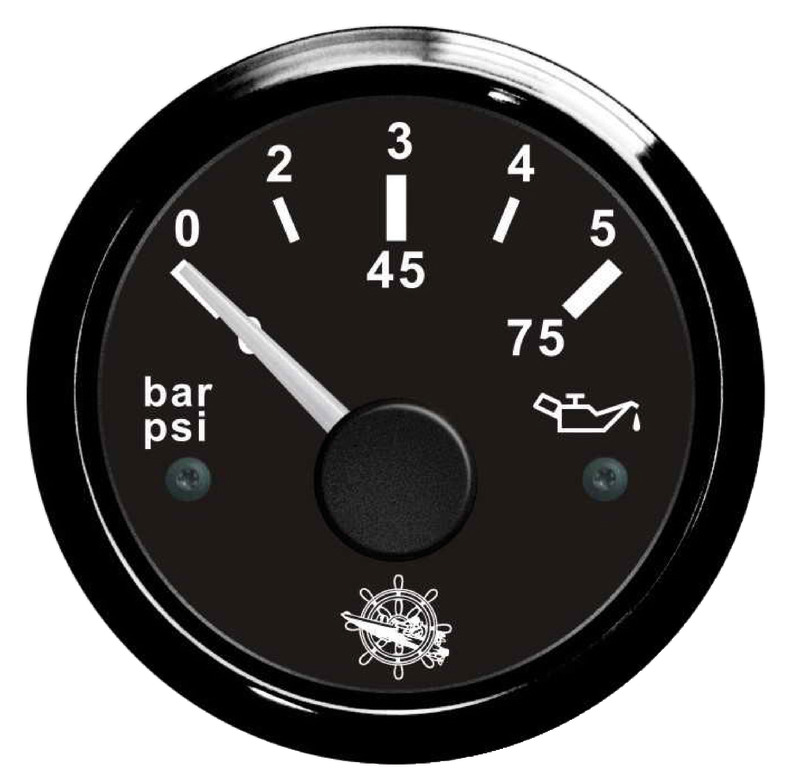

Osculati Oil Pressure Indicators – 0–5 Bar / 0–10 Bar Marine Gauge 12/24V, Ø57 mm
The Osculati Oil Pressure Indicators are marine instruments designed to monitor engine oil pressure in onboard propulsion systems. These gauges allow continuous control of lubrication pressure to ensure proper engine operation.
The instruments operate on 12V or 24V electrical systems and are available with 0–5 bar or 0–10 bar measurement ranges. The gauges feature analog displays with red and yellow dial backlighting for improved readability in low-light or night navigation conditions.
Different dial colors and bezel finishes are available to match various dashboard layouts while maintaining the same compact marine instrument dimensions suitable for standard panel installation.
Key Features
- Oil pressure gauges for marine engines
- Available measurement ranges: 0–5 bar and 0–10 bar
- Suitable for 12V and 24V electrical systems
- Red and yellow backlit dial for improved visibility
- Black or white dial options
- Black or glossy bezel finishes
- Compact marine dashboard instrument
- Standard Ø57 mm installation size
Available Variants
Item Dial / Bezel Scale Voltage Instrument Ø Hole Ø Depth (P) 27.320.10 Black dial, black bezel 0–5 bar 12 / 24 V 57 mm 51 mm 45 mm 27.320.11 Black dial, black bezel 0–10 bar 12 / 24 V 57 mm 51 mm 45 mm 27.321.10 Black dial, glossy bezel 0–5 bar 12 / 24 V 57 mm 51 mm 45 mm 27.321.11 Black dial, glossy bezel 0–10 bar 12 / 24 V 57 mm 51 mm 45 mm 27.322.10 White dial, glossy bezel 0–5 bar 12 / 24 V 57 mm 51 mm 45 mm 27.322.11 White dial, glossy bezel 0–10 bar 12 / 24 V 57 mm 51 mm 45 mm
Installation Dimensions
- Instrument diameter: 57 mm
- Panel hole diameter: 51 mm
- Installation depth (P): 45 mm
-
