ID
1351284
$ 132.20
1-2 weeks delivery time
Type:
- -50A/0/+50A
- -80A/0/+80A
Item:
- Black Dial & Black Bezel
- Black Dial & Glossy Bezel
- White Dial & Glossy Bezel

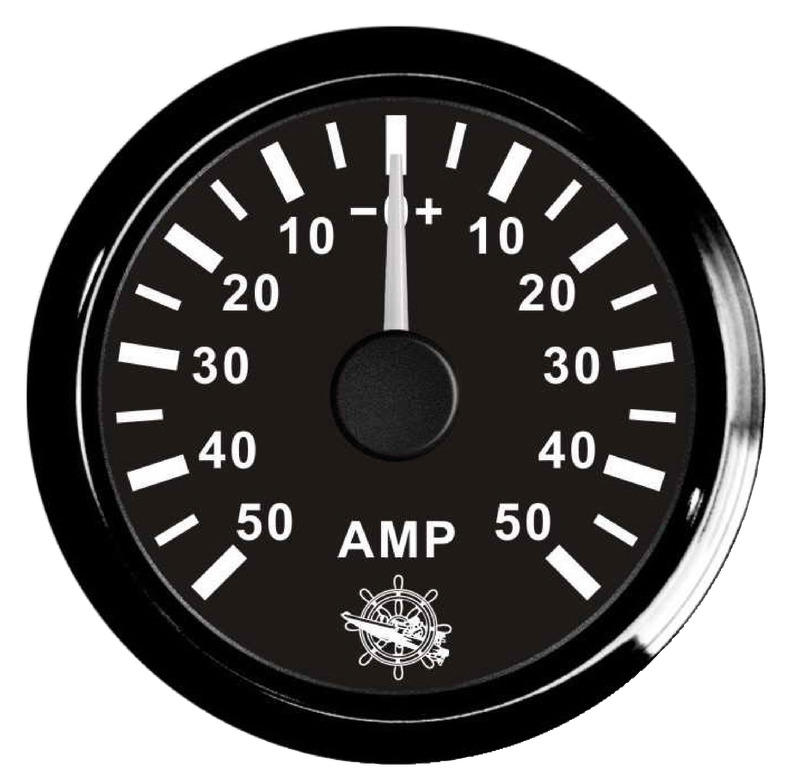

The Osculati 27.320 Series Marine Ammeters are compact electrical gauges designed for monitoring current flow in 12V and 24V onboard electrical systems. These instruments operate with an 8/32 V shunt, making them suitable for most ammeter installations on the market. The series includes models with ±50 A or ±80 A scales, available with black or white dial options and black or glossy bezel finishes. All gauges feature red and yellow dial backlighting for improved readability and have a 57 mm instrument diameter, 51 mm panel cut-out, and 45 mm installation depth, allowing standard dashboard installation.
- Description
- Ask a Question
-
Osculati 27.320 Series – Marine Ammeters ±50A / ±80A 12/24V with 8/32V Shunt, Ø57 mm
The Osculati 27.320 Series Ammeters are marine electrical gauges designed to monitor current flow in 12V and 24V onboard electrical systems. These instruments operate with an 8/32 V shunt, making them compatible with most ammeter installations used in marine and automotive applications.
The series includes several variants with different dial colors, bezel finishes, and measurement ranges. All models feature clear analog displays with red and yellow dial backlighting to ensure good visibility in low-light conditions. Their standard Ø57 mm instrument size allows easy installation in most marine dashboards and control panels.
Key Features
- Marine ammeters for monitoring electrical current
- Compatible with 12V and 24V onboard electrical systems
- Designed for use with 8/32 V shunt
- Available with ±50 A or ±80 A measurement scale
- Black or white dial options
- Black or glossy bezel finishes
- Red and yellow backlit dial for improved visibility
- Standard Ø57 mm marine gauge size
Available Variants
Item Dial / Bezel Scale Voltage Instrument Ø Hole Ø Depth (P) 27.320.23 Black dial, black bezel ±50 A 12 / 24 V 57 mm 51 mm 45 mm 27.321.23 Black dial, glossy bezel ±50 A 12 / 24 V 57 mm 51 mm 45 mm 27.321.24 Black dial, glossy bezel ±80 A 12 / 24 V 57 mm 51 mm 45 mm 27.322.23 White dial, glossy bezel ±50 A 12 / 24 V 57 mm 51 mm 45 mm 27.322.24 White dial, glossy bezel ±80 A 12 / 24 V 57 mm 51 mm 45 mm
Installation Dimensions
- Instrument diameter: 57 mm
- Panel hole diameter: 51 mm
- Installation depth (P): 45 mm
-
