ID
1351290
$ 123.72
1-2 weeks delivery time
Type:
- -80A/0/+80A
Item:
- Black Dial & Black Bezel
- Black Dial & Glossy Bezel
- White Dial & Glossy Bezel
The Osculati Digital Ammeters series includes compact marine digital gauges designed for monitoring current flow in 12V and 24V onboard electrical systems. These instruments measure up to ±80 A and operate with an 8/32-volt shunt, making them compatible with most ammeter installations. The gauges feature red and yellow backlit digital displays for clear readability and are available with black or white dial options and black or glossy bezel finishes. All models have a 57 mm instrument diameter, 51 mm panel cut-out, and 45 mm installation depth, allowing standard dashboard installation.
- Description
- Ask a Question
-

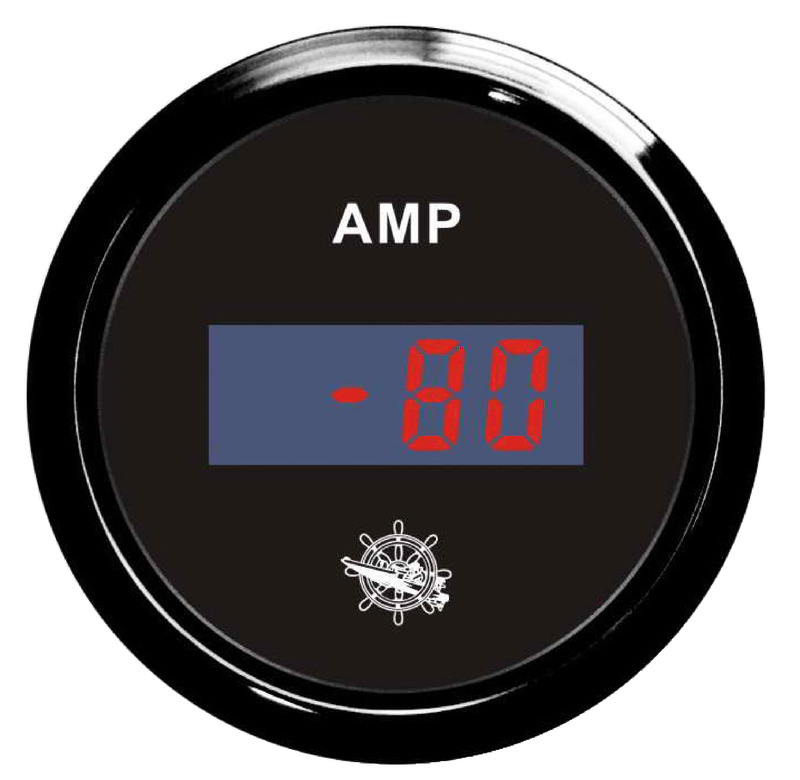

Osculati Digital Ammeters – Marine Digital Ammeter ±80A 12/24V with 8/32V Shunt, Ø57 mm
The Osculati Digital Ammeter series consists of compact marine electrical instruments designed to monitor current flow in 12V and 24V onboard electrical systems. These digital gauges operate with an 8/32-volt shunt, making them suitable for most standard ammeter installations used on boats and other marine applications.
Each instrument provides a ±80 A measurement range and features a clear digital display with red and yellow backlighting for good visibility in low-light conditions. The gauges are available with different dial colors and bezel finishes to match various dashboard styles, while maintaining a standard marine instrument size for easy installation.
Key Features
- Marine digital ammeter for monitoring electrical current
- Measurement range: ±80 A
- Suitable for 12V and 24V electrical systems
- Compatible with 8/32-volt shunt
- Digital display with red and yellow backlighting
- Available with black or white dial options
- Black or glossy bezel finishes
- Standard Ø57 mm marine gauge size
Available Variants
Item Dial / Bezel Scale Voltage Instrument Ø Hole Ø Depth (P) 27.320.44 Black dial, black bezel ±80 A 12 / 24 V 57 mm 51 mm 45 mm 27.321.44 Black dial, glossy bezel ±80 A 12 / 24 V 57 mm 51 mm 45 mm 27.322.44 White dial, glossy bezel ±80 A 12 / 24 V 57 mm 51 mm 45 mm
Installation Dimensions
- Instrument diameter: 57 mm
- Panel hole diameter: 51 mm
- Installation depth (P): 45 mm
-
