ID
1353997
$ 33.18
1-2 weeks delivery time
Type:
- 240–33 Ohm
- 0–190 Ohm
- 240-33/0-190 Ohm Selectable
Item:
- Black Dial & Black Bezel
- White Dial & Glossy Bezel

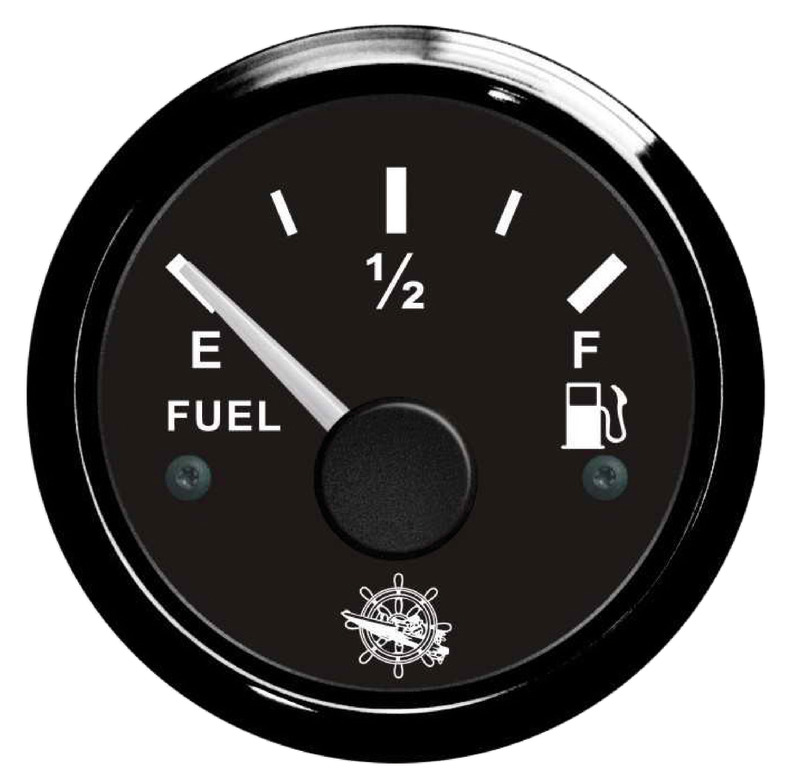

The Osculati Fuel Level Gauges are marine dashboard instruments designed to monitor fuel tank levels using 240–33 Ohm, 0–190 Ohm, or selectable 240–33 / 0–190 Ohm senders. The gauges operate on 12V or 24V electrical systems and feature red and yellow backlit dials for clear visibility. The series includes versions with black or white dial options and black or glossy bezel finishes. All models share standard installation dimensions with a 57 mm outer diameter, 51 mm panel hole diameter, and 45 mm installation depth, allowing installation on most marine dashboards.
- Description
- Ask a Question
-
Osculati Fuel Level Gauges – 240–33 Ohm / 0–190 Ohm Marine Fuel Tank Gauge 12/24V, Ø57 mm
The Osculati Fuel Level Gauges are marine instruments designed to monitor fuel levels in onboard tanks. The gauges are compatible with different sender resistance standards including 240–33 Ohm, 0–190 Ohm, and selectable 240–33 / 0–190 Ohm versions.
The instruments operate on 12V or 24V electrical systems and feature analog displays with red and yellow dial backlighting for clear readability in low-light conditions. Several dial and bezel combinations are available to match different dashboard styles while maintaining a compact marine instrument format.
Key Features
- Fuel tank level gauges for marine applications
- Compatible with 240–33 Ohm fuel senders
- Compatible with 0–190 Ohm fuel senders
- Selectable 240–33 / 0–190 Ohm versions available
- Suitable for 12V and 24V electrical systems
- Red and yellow backlit dial for improved visibility
- Black or white dial options
- Black or glossy bezel finishes
- Standard Ø57 mm marine dashboard installation
Available Variants
Item Dial / Bezel Sender Signal Voltage Instrument Ø Hole Ø Depth (P) 27.320.01 Black dial, black bezel 240–33 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.320.00 Black dial, black bezel 0–190 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.320.02 Black dial, black bezel 240–33 / 0–190 Ω selectable 12 / 24 V 57 mm 51 mm 45 mm 27.321.01 Black dial, glossy bezel 240–33 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.321.00 Black dial, glossy bezel 0–190 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.321.02 Black dial, glossy bezel 240–33 / 0–190 Ω selectable 12 / 24 V 57 mm 51 mm 45 mm 27.322.01 White dial, glossy bezel 240–33 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.322.00 White dial, glossy bezel 0–190 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.322.02 White dial, glossy bezel 240–33 / 0–190 Ω selectable 12 / 24 V 57 mm 51 mm 45 mm
Installation Dimensions
- Instrument diameter: 57 mm
- Panel hole diameter: 51 mm
- Installation depth (P): 45 mm
-
